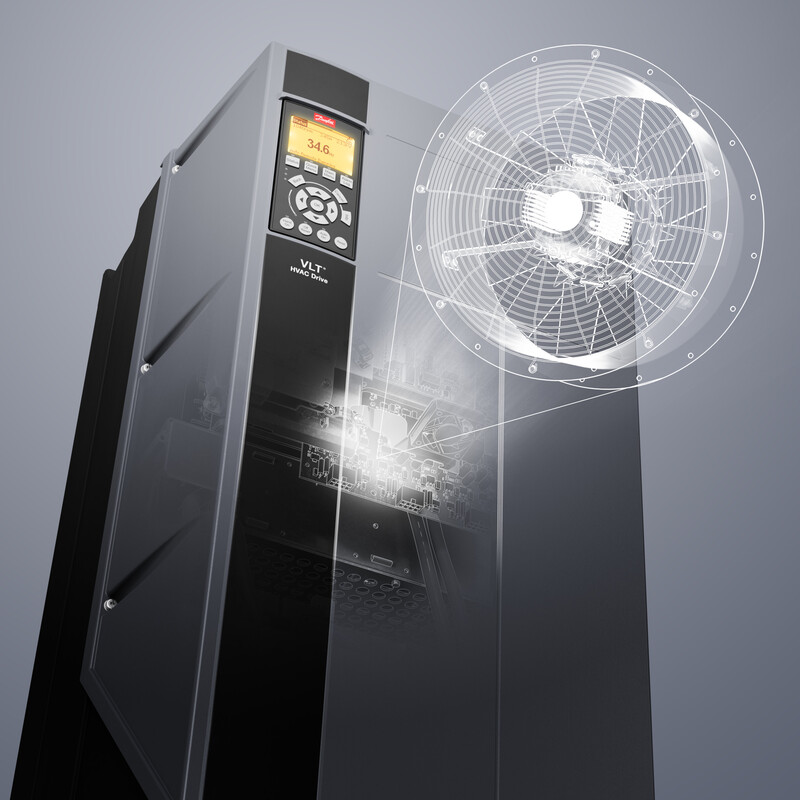

FREQUENCY CONVERTER IP55 VLT FC-102P55K0E55H1 / 55KW
Product code
3889906
Frame C1
IP55
EMC level C2 150 m (EMC C1 level 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
Main switch
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
IP55
EMC level C2 150 m (EMC C1 level 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
Main switch
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N106 A
Max. output at quadratic load at rated output voltage55 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPAET896
STK3889906
PLC3889906
GTIN/EAN5702427351172
Manufacturer part number131B7025
Vendor material number131B7025
Basic information
Package measurements (L x W x H)320 x 320 x 700 mm
Package volume71.68 l
Package weight45 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
