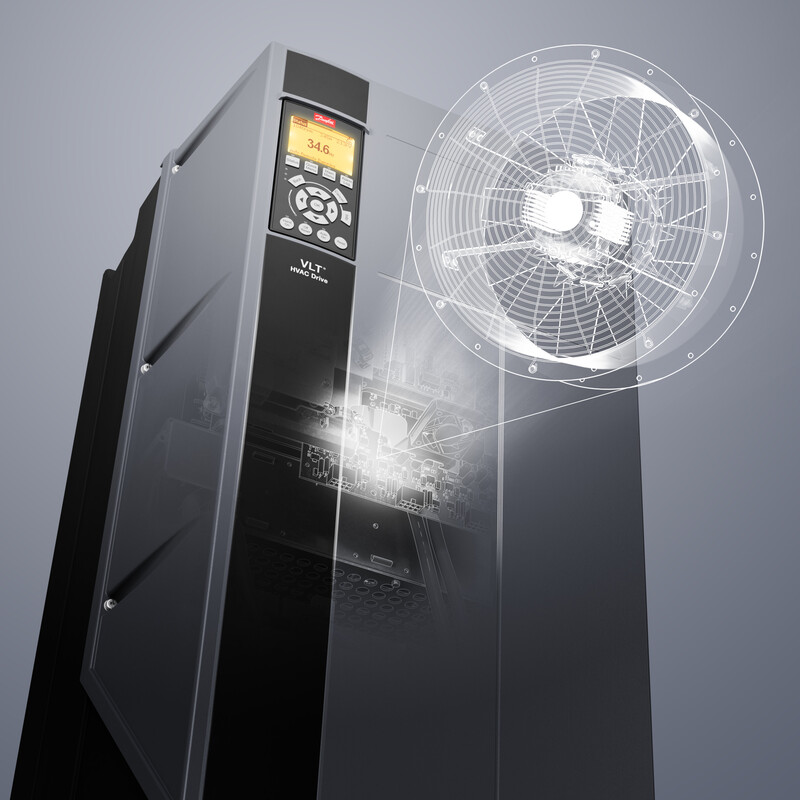

FREQUENCY CONVERTER IP55 VLT FC-102P90K0E55H1,90KW
Product code
3889962
Frame C2
IP55
EMC level C2 150 m (EMC C1 level 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
Main switch
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
IP55
EMC level C2 150 m (EMC C1 level 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
Main switch
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N177 A
Max. output at quadratic load at rated output voltage90 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPAET910
STK3889962
PLC3889962
GTIN/EAN5702427339774
Manufacturer part number131B6204
Vendor material number131B6204
Basic information
Package measurements (L x W x H)350 x 400 x 800 mm
Package volume112 l
Package weight65 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
