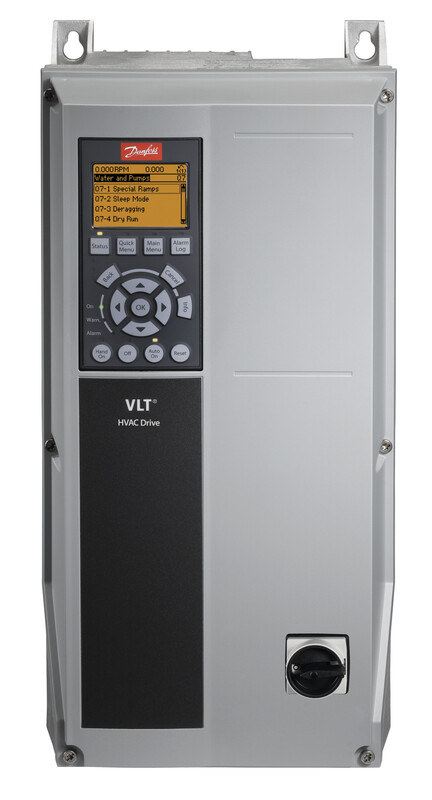

FREQUENCY CONVERTER VLT AQUA 0,55KW IP55 H1 PK O
Product code
3882567
VLT® AQUA Drive FC 200
The Danfoss VLT AQUA frequency converter is specifically designed for water and wastewater applications. The VLT AQUA frequency converter offers a wide range of efficient standard and additional functions and is the most cost-effective solution for water and wastewater applications. This product description is an automated translation of the original Finnish description.
The Danfoss VLT AQUA frequency converter is specifically designed for water and wastewater applications. The VLT AQUA frequency converter offers a wide range of efficient standard and additional functions and is the most cost-effective solution for water and wastewater applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N1.8 A
Max. output at quadratic load at rated output voltage0.55 kW
Max. output at linear load at rated output voltage0.55 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Product codes
SAPCER679
STK3882567
PLC3882567
GTIN/EAN5702427939615
Manufacturer part number131U2879
Vendor material number131U2879
Basic information
Package measurements (L x W x H)177 x 200 x 420 mm
Package volume14.868 l
Package weight9.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
