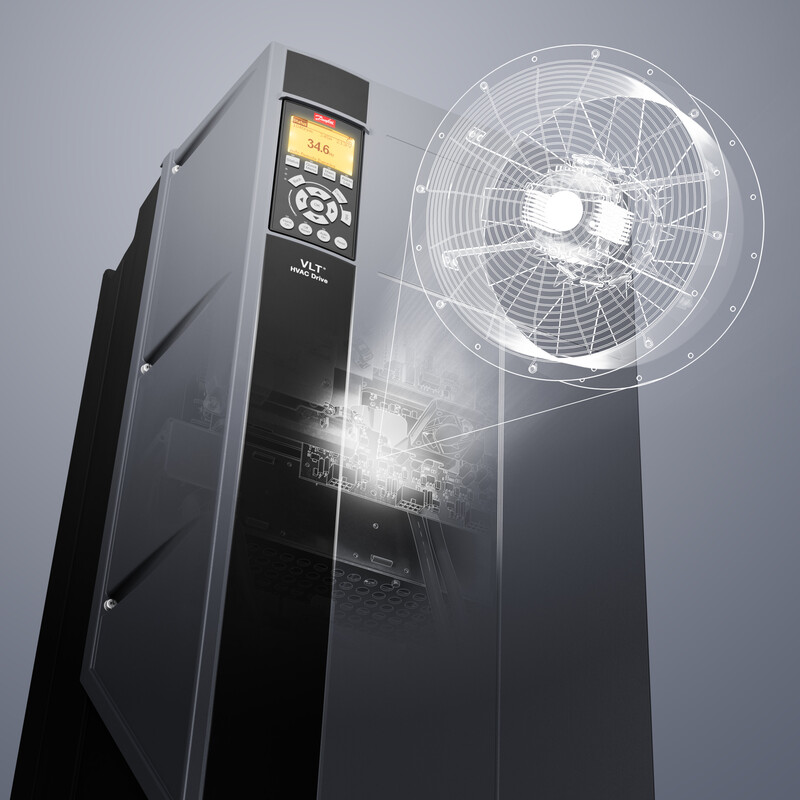

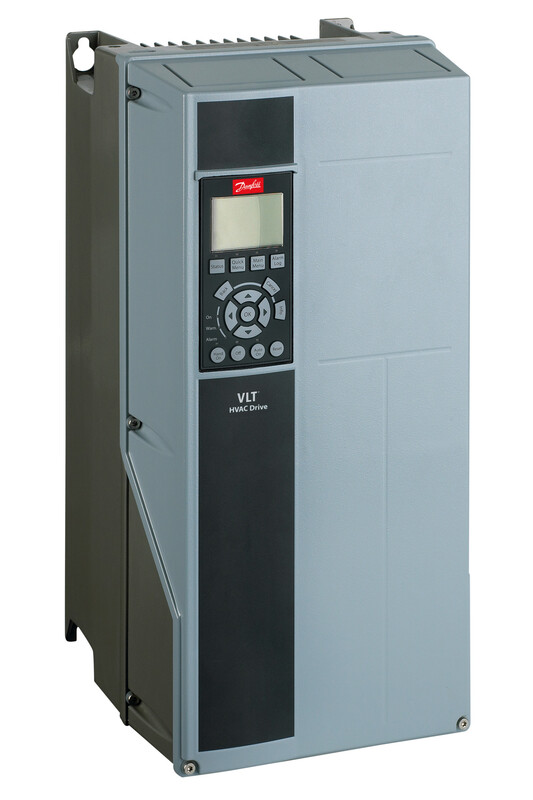

FREQUENCY CONVERTER VLT HVAC 11KW IP55 H1 PK O
Product code
3882581
Frame B1
IP55
Includes main switch
EMC level C2 150 m (EMC level C1 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
STO
ATEX thermistor input
This product description is an automated translation of the original Finnish description.
IP55
Includes main switch
EMC level C2 150 m (EMC level C1 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
STO
ATEX thermistor input
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N24 A
Max. output at quadratic load at rated output voltage11 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPCER697
STK3882581
PLC3882581
GTIN/EAN5702427759244
Manufacturer part number131L5087
Vendor material number131L5087
Basic information
Package measurements (L x W x H)260 x 242 x 480 mm
Package volume30.202 l
Package weight23 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
