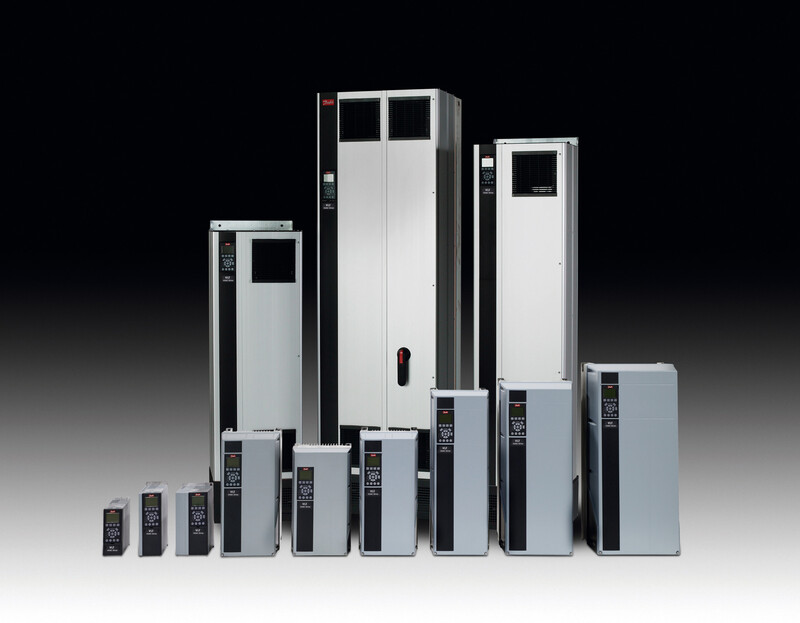

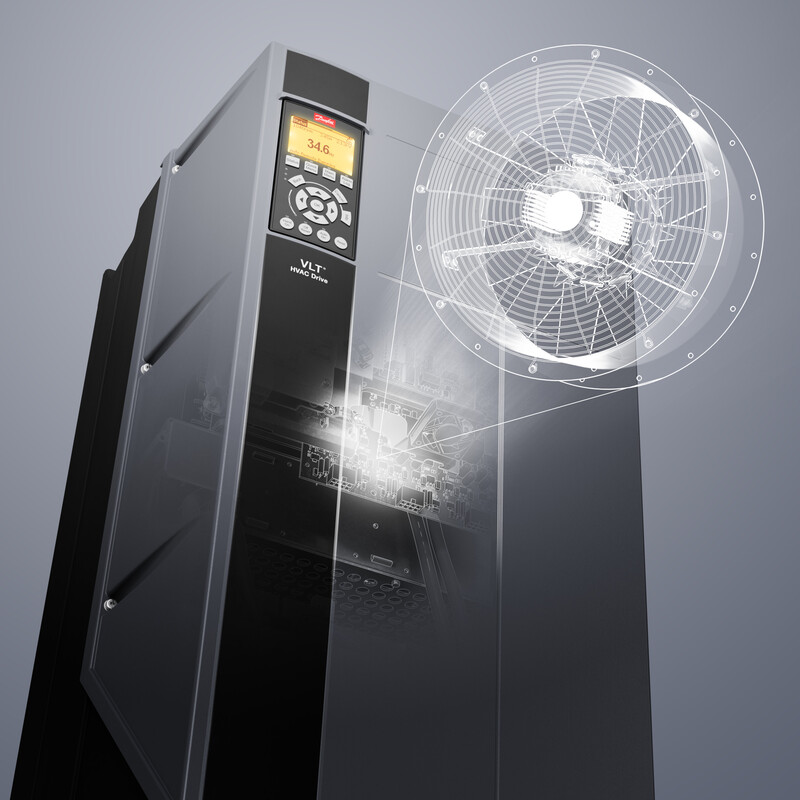

FREQUENCY CONVERTER VLT HVAC 18,5KW IP55 H1 PK O
Product code
3882583
Frame B1
IP55
Includes main switch
EMC level C2 150 m (EMC level C1 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
STO
ATEX thermistor input
This product description is an automated translation of the original Finnish description.
IP55
Includes main switch
EMC level C2 150 m (EMC level C1 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, down to -25°C
Available as factory order:
STO
ATEX thermistor input
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N37.5 A
Max. output at quadratic load at rated output voltage18.5 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPCER693
STK3882583
PLC3882583
GTIN/EAN5702427759268
Manufacturer part number131L5089
Vendor material number131L5089
Basic information
Package measurements (L x W x H)260 x 242 x 650 mm
Package volume40.898 l
Package weight27 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
