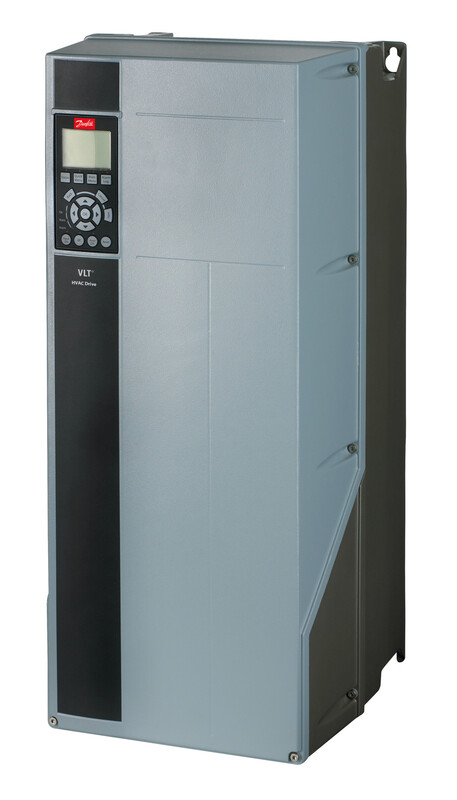

FREQUENCY CONVERTER VLT HVAC 37KW IP55 H1 PK
Product code
3889925
Chassis C1
IP55
Includes main switch
EMC level C2 150 m (EMC C1 level 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, minimum -25°C
Available as factory order:
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
IP55
Includes main switch
EMC level C2 150 m (EMC C1 level 50 m)
Maximum ambient temperature +50°C
Also for outdoor installation, minimum -25°C
Available as factory order:
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N73 A
Max. output at quadratic load at rated output voltage37 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPCER762
STK3889925
PLC3889925
GTIN/EAN5702427358652
Manufacturer part number131B7598
Vendor material number131B7598
Basic information
Package measurements (L x W x H)310 x 308 x 680 mm
Package volume64.926 l
Package weight43 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
