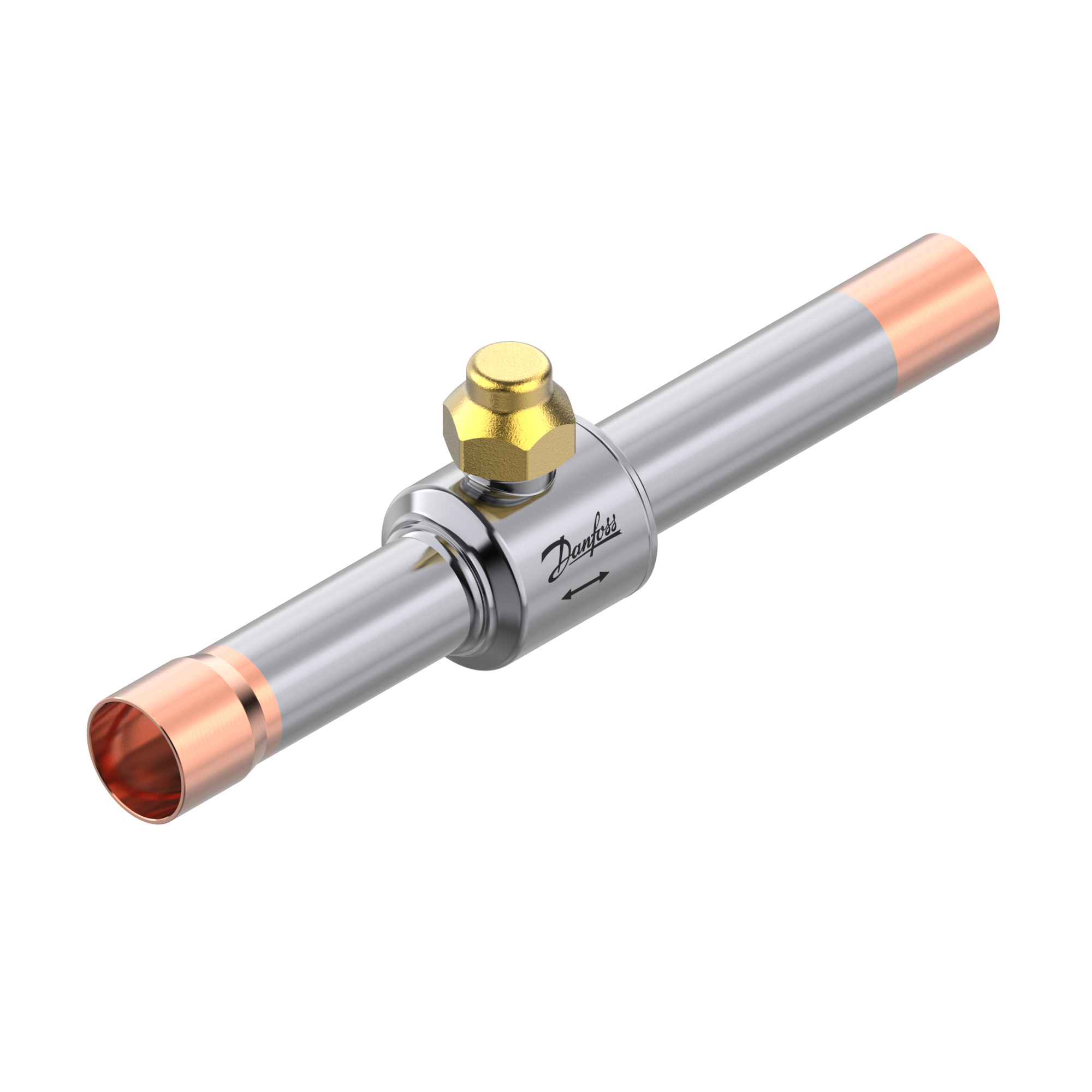

BALL VALVE DANFOSS GBC 22L, 50bar
Product code
K4133260
The valve features a stainless steel body and a copper-plated stainless steel tube. Enables easy and quick soldering into systems with copper piping. Complies with lead-free and full RoHS requirements, has UL/cUL-listed construction, and meets the requirements of the Pressure Equipment Directive 2014/68/EU. Bidirectional flow and overpressure design prevent fluid from being trapped when the valve is closed. Maximum operating pressure 50 bar. Not approved for CO2 systems. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityStainless steel 304 (1.4301)
Nominal diameter connection 1Other
Outer pipe diameter connection 122 mm
Connection 1Soldered end
Nominal diameter connection 2Other
Outer pipe diameter connection 222 mm
Connection 2Soldered end
ModelStraight
Kvs value33.34
Product codes
SAPDQF184
PLCK4133260
GTIN/EAN5715255009924
Manufacturer part number009L8525
Vendor material number009L8525
Basic information
Package measurements (L x W x H)250 x 80 x 140 mm
Package volume2.8 l
Package weight0.465 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151606
BrandDANFOSS
VendorDANFOSS OY AB
