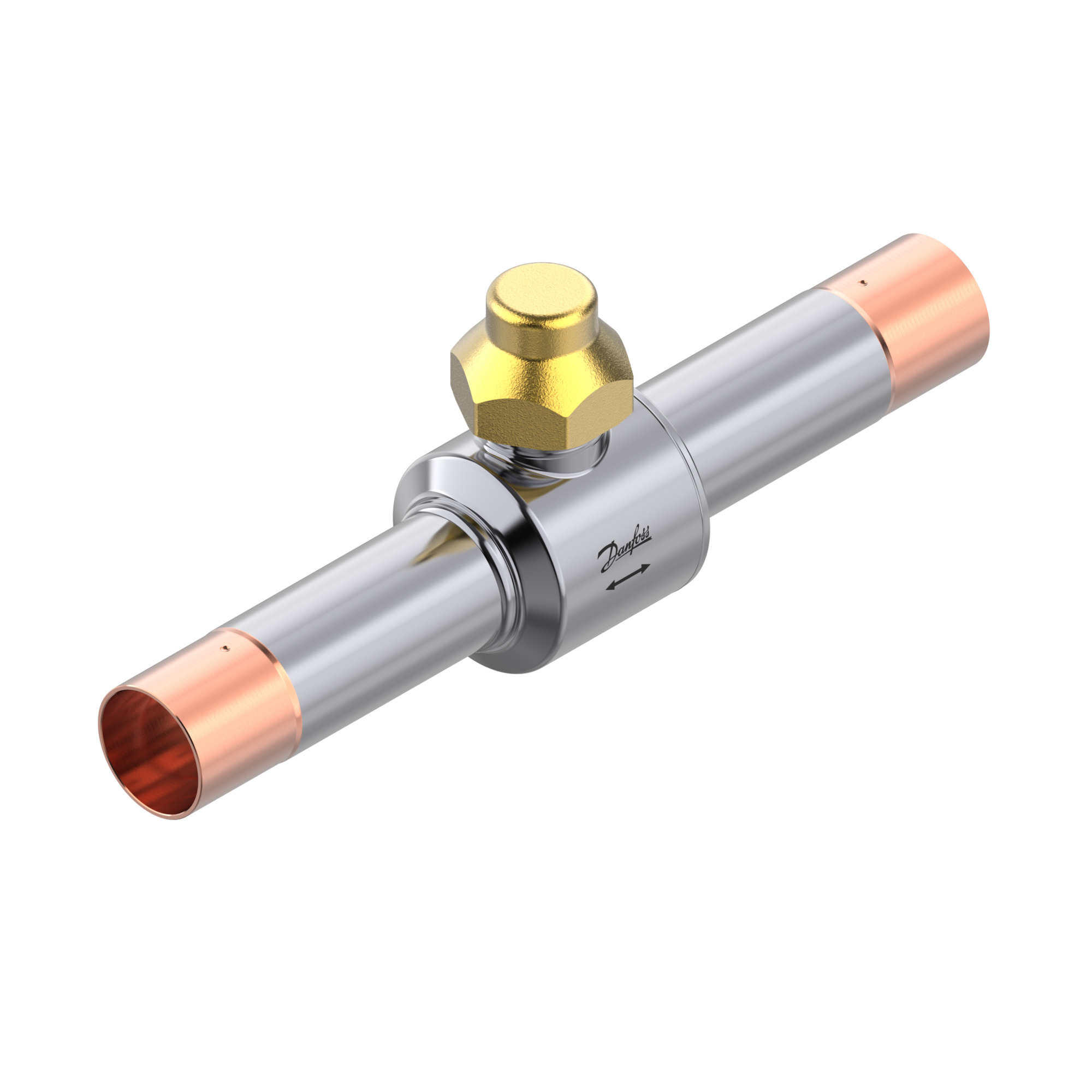

BALL VALVE DANFOSS GBC 25L, 50bar
Product code
K4133395
The valve features a stainless steel body and a copper-plated stainless steel tube. Enables easy and quick soldering into systems with copper piping. Complies with lead-free and full RoHS requirements, has UL/cUL-listed construction, and meets the requirements of the Pressure Equipment Directive 2014/68/EU. Bidirectional flow and overpressure design prevent fluid from being trapped when the valve is closed. Maximum operating pressure 50 bar. Not approved for CO2 systems. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityStainless steel 304 (1.4301)
Nominal diameter connection 11 inch (25)
Connection 1Soldered end
Nominal diameter connection 21 inch (25)
Connection 2Soldered end
ModelStraight
Kvs value62.25
Product codes
SAPDQF157
PLCK4133395
GTIN/EAN5715255009948
Manufacturer part number009L8680
Vendor material number009L8680
Basic information
Package measurements (L x W x H)250 x 80 x 140 mm
Package volume2.8 l
Package weight0.795 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151606
BrandDANFOSS
VendorDANFOSS OY AB
