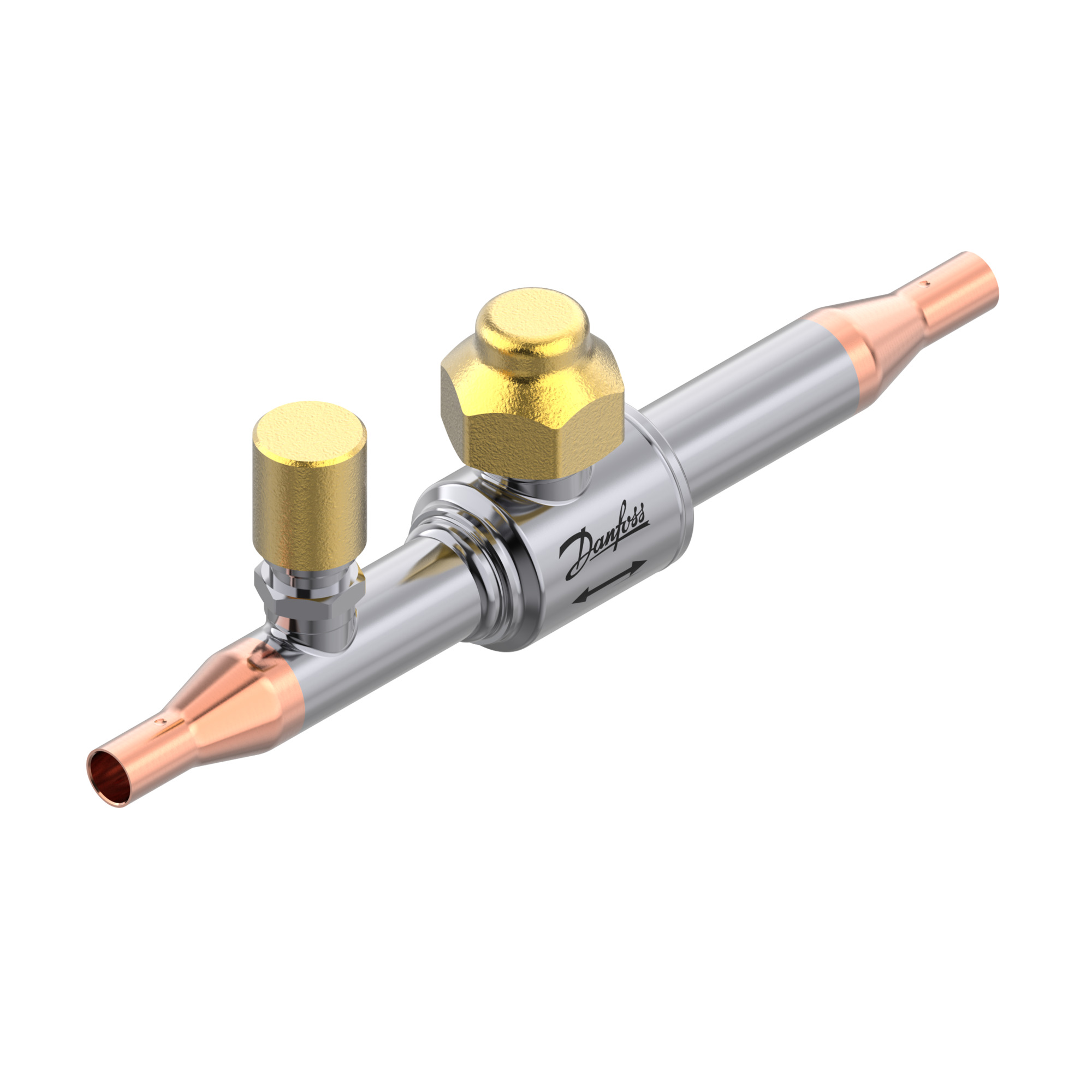

BALL VALVE DANFOSS GBC 6L, 50bar
Product code
K4133370
The valve features a stainless steel body and a copper-plated stainless steel tube. Enables easy and quick soldering into systems with copper piping. Complies with lead-free and full RoHS requirements, has UL/cUL-listed construction, and meets the requirements of the Pressure Equipment Directive 2014/68/EU. Bidirectional flow and overpressure design prevent fluid from being trapped when the valve is closed. Maximum operating pressure 50 bar. Not approved for CO2 systems. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityStainless steel 304 (1.4301)
Nominal diameter connection 1Other
Outer pipe diameter connection 16 mm
Connection 1Soldered end
Nominal diameter connection 2Other
Outer pipe diameter connection 26 mm
Connection 2Soldered end
ModelStraight
Kvs value1.83
Product codes
SAPDQF168
PLCK4133370
GTIN/EAN5715255009696
Manufacturer part number009L8660
Vendor material number009L8660
Basic information
Package measurements (L x W x H)160 x 60 x 70 mm
Package volume0.672 l
Package weight0.185 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151606
BrandDANFOSS
VendorDANFOSS OY AB
