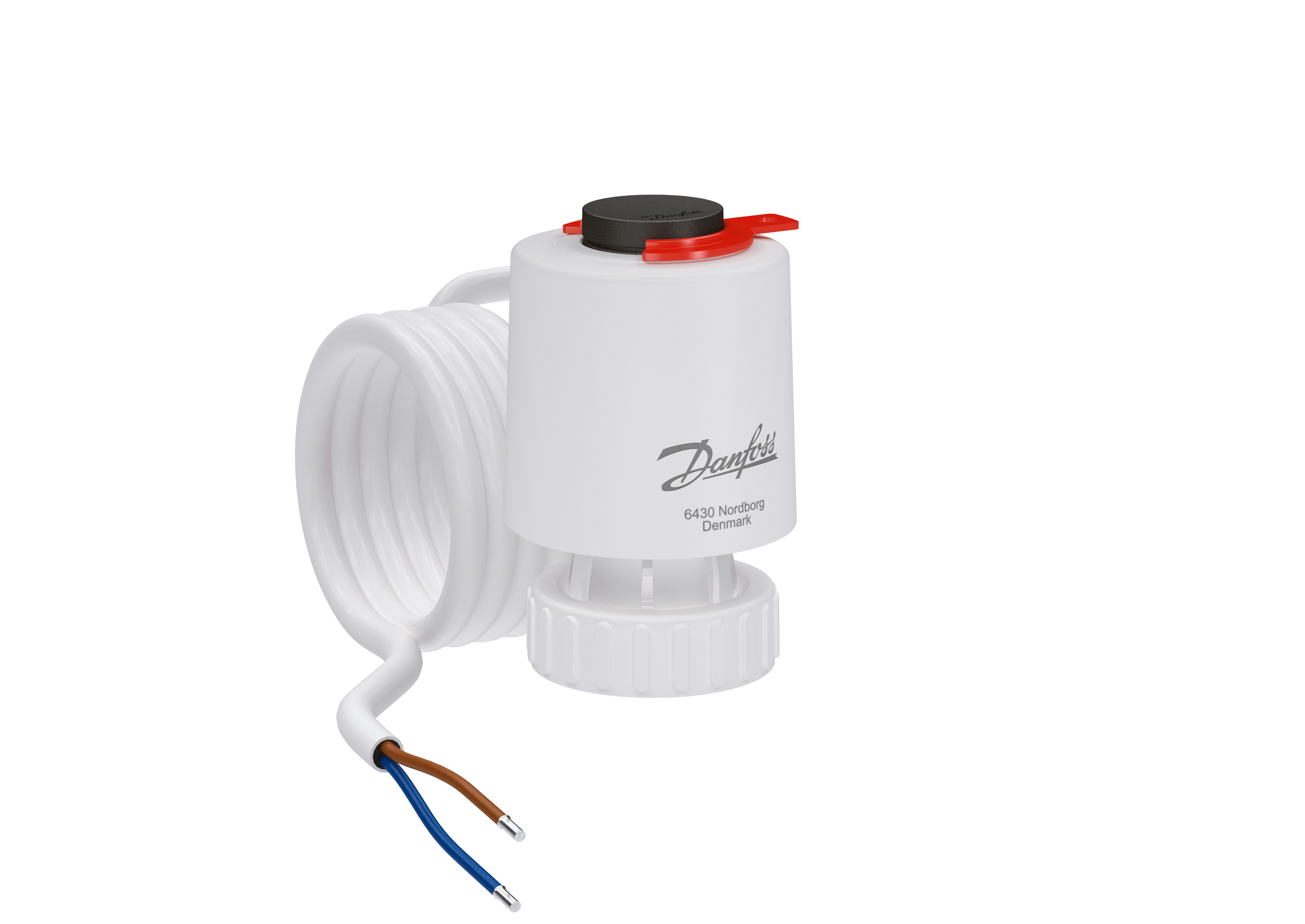

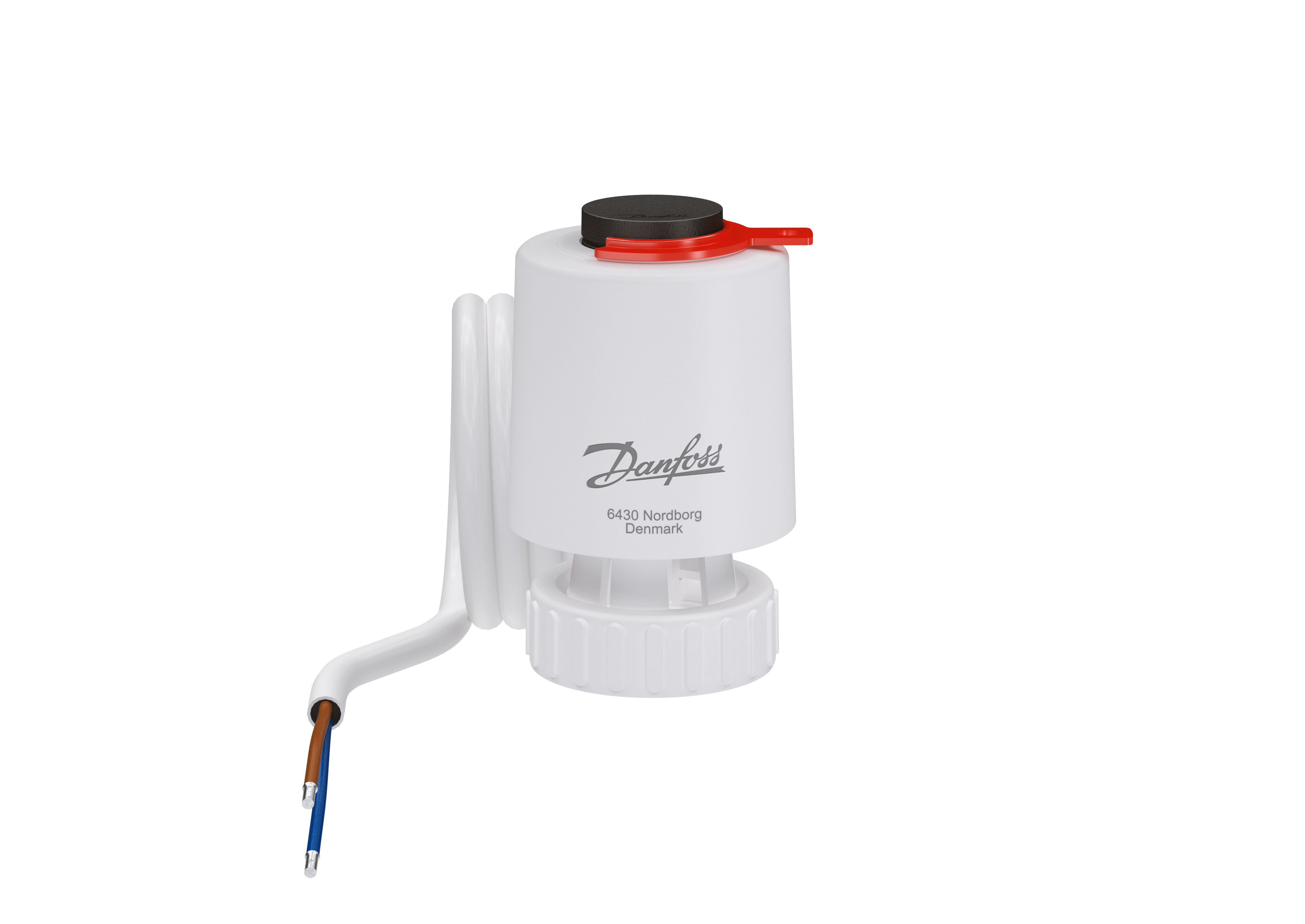

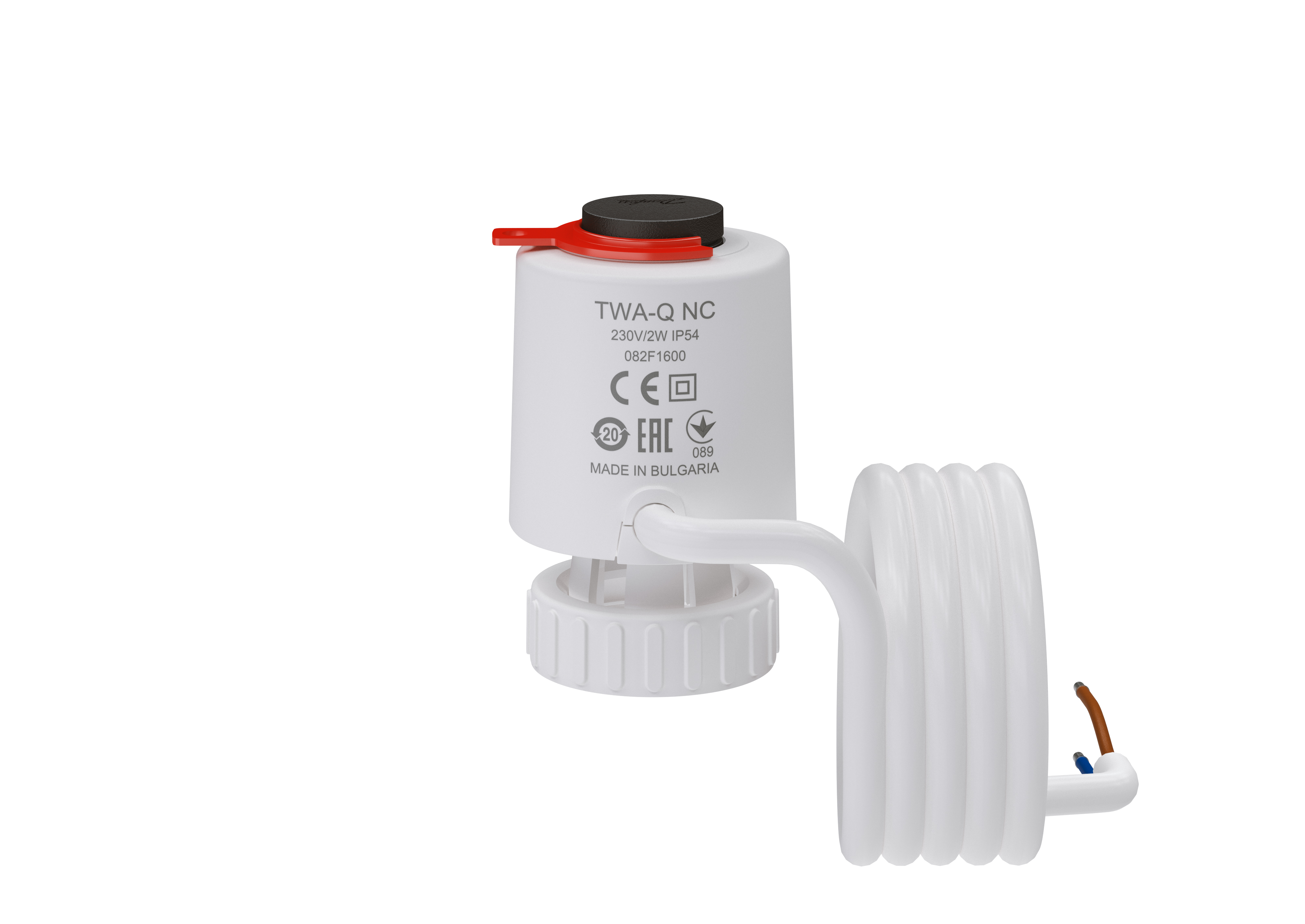

THERMAL ACTUATOR DANFOSS 230 V TWA-Q NC 1,2m
Product code
4015258
The Danfoss actuator TWA-Q is used together with the Danfoss pressure-independent control valve AB-QM. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Thermal servomotor (EC010193)
Connection to stop valveM30 x 1.5
Supply voltage230 V AC
FunctionDeactivated when closed NC
With position indicatoryes
Cable length1.2 m
Stroke length5 mm
ColourWhite
Degree of protection (IP)IP54
Product codes
SAPDKS624
HPAC4015258
PLC4015258
GTIN/EAN6415840152583
Manufacturer part number082F1600
Vendor material number082F1600
Basic information
Package measurements (L x W x H)76 x 68 x 92 mm
Package volume0.475 l
Package weight0.176 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141616
BrandDANFOSS
VendorDANFOSS OY AB
