DEHN+SÖHNE
CONNECTOR DEHNEARTHING CROSS CONNECTOR 8-10MM
Product code
5804057
PRODUCT DESCRIPTION
Brand: DEHN + SÖHNE
Type: KS 8.10 8.10 FL30 ZP STTZN
Part No.: 319 201

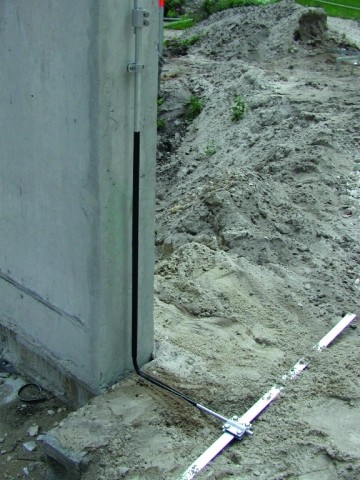

Cross unit for aboveground and underground connections for connecting conductors in cross and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Connector for lightning protection (EC000514)
Diameter round conductor 18 - 10 mm
Width flat conductor 130 - 30 mm
Diameter round conductor 28 - 10 mm
Width flat conductor 230 - 30 mm
MaterialSteel
Surface protectionHot-dip galvanised
Type of fastening screwsHexagon screw
Lightning current load-bearing capacity (10/350 µs)100 kA
Product codes
SAPDNH106
STK5804057
PLC5804057
GTIN/EAN6410058040578
Manufacturer part number319201
Vendor material number5804057
Basic information
Package measurements (L x W x H)60 x 60 x 32 mm
Package volume0.115 l
Package weight0.324 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC39121621
BrandDEHN+SÖHNE
VendorFINN ELECTRIC OY
