DEHN+SÖHNE
EARTHING ACCESSORY DEHN STEEL ROPE EARTHING CONNECTOR,
Product code
5804209

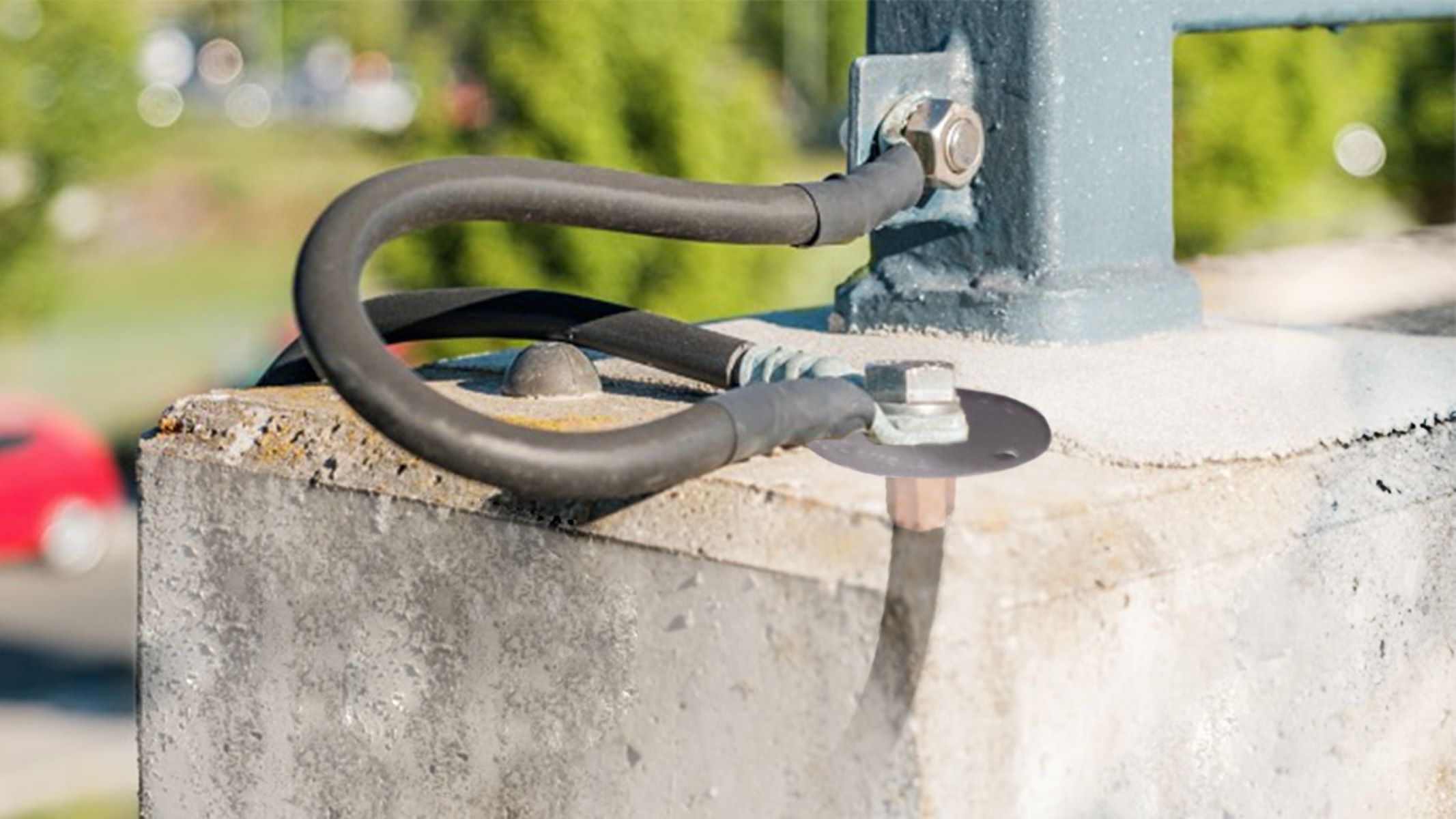

Grounding connectors are designed for grounding, return circuits, and potential equalization in railway line applications.

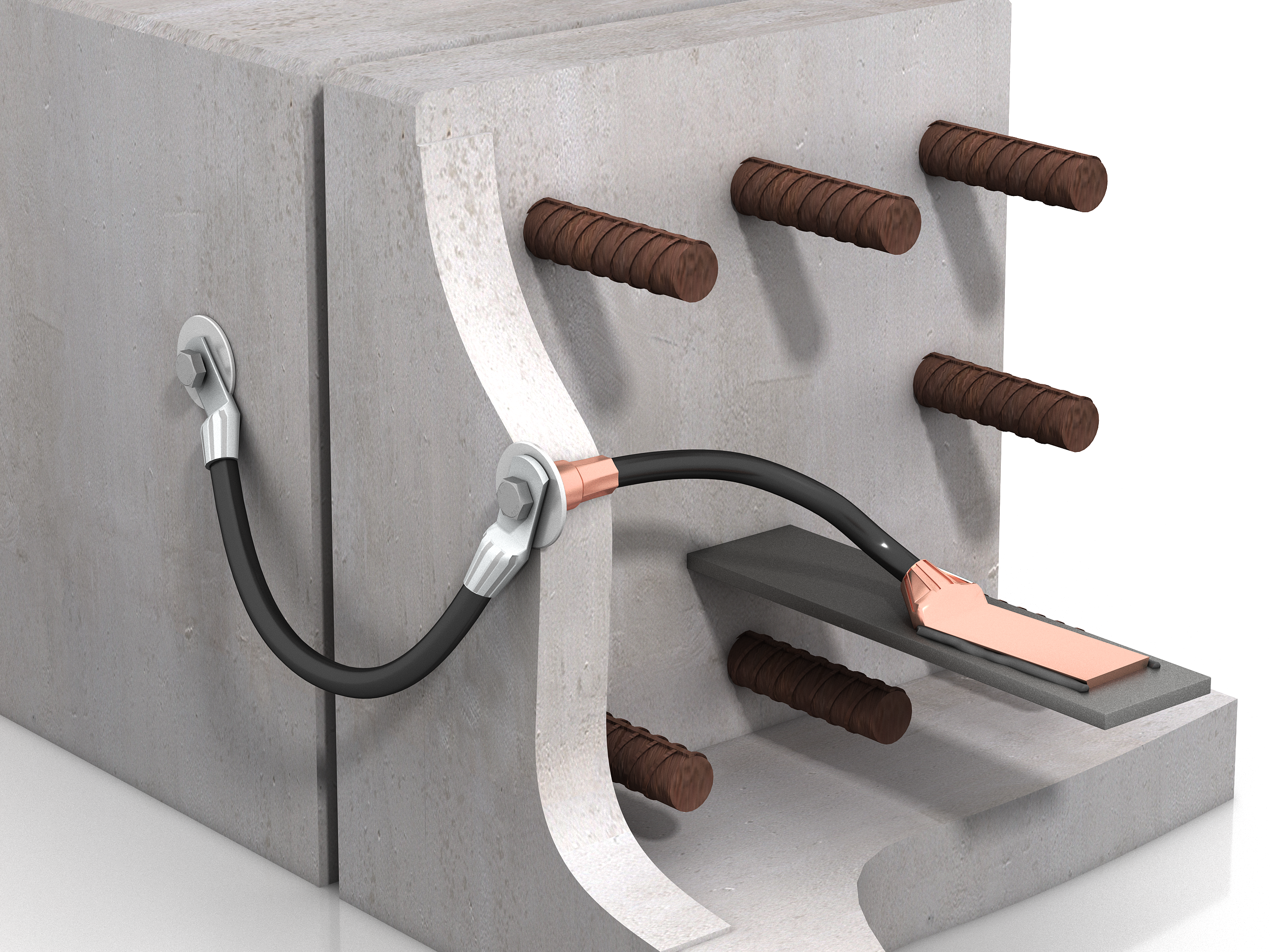

The halogen-free (sheathed) version D BEB 26 – for connecting external grounding points or other earthable components – consists of a steel cable that serves as the grounding conductor and simultaneously acts as a theft deterrent. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earthing strip preassembled (EC002809)
Conductor materialOther
Conductor surfaceOther
Nominal cross section conductor95 mm²
Conductor categoryClass 2 = stranded
Shape of conductorRound
Braidedno
Outer diameter approximate17 mm
Length500 mm
Insulatedyes
With cable lugsyes
Hole diameter connection17 mm
Product codes
SAPDLT434
STK5804209
PLC5804209
GTIN/EAN4013364439610
Manufacturer part number419260
Vendor material number5804209
Basic information
Package measurements (L x W x H)30 x 30 x 530 mm
Package volume0.477 l
Package weight0.63 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121621
BrandDEHN+SÖHNE
VendorFINN ELECTRIC OY
