DEHN+SÖHNE
SURGE ARRESTER FOR TELE BUSTECTOR KNX BT 24
Product code
3208067
KNX/EIB device T2 overvoltage protection, rated voltage 24 V, rated current 6 A, connection cables 200 mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Surge protection device for data networks/MCR-technology (EC000943)
Max. continuous voltage DC45 V
Nominal discharge surge current (8/20)5 kA
Lightning impulse current (10/350 µs)1 kA
Nominal load current6 A
Voltage protection level core/core1200 V
Voltage protection level core/earth650 V
Voltage protection level core/signal ground650 V
Voltage protection level signal ground/protective ground650 V
Limiting frequency70 MHz
Mounting methodOther
Connection 1Connection cable
Number of conductors (without earthing)2
Earthing viaSeparate conductor
Assembly width12 mm
Degree of protection (IP)IP20
Product codes
SAPDIK442
STK3208067
PLC3208067
GTIN/EAN4013364047365
Manufacturer part number925001
Vendor material number3208067
Basic information

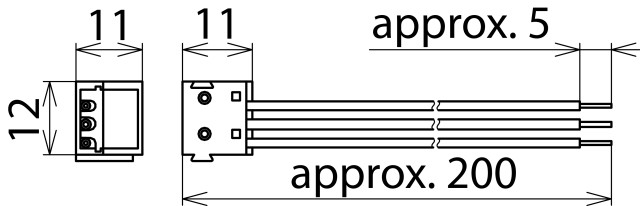

Package measurements (L x W x H)200 x 12 x 11 mm
Package volume0.026 l
Package weight0.01 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121634
BrandDEHN+SÖHNE
VendorFINN ELECTRIC OY
