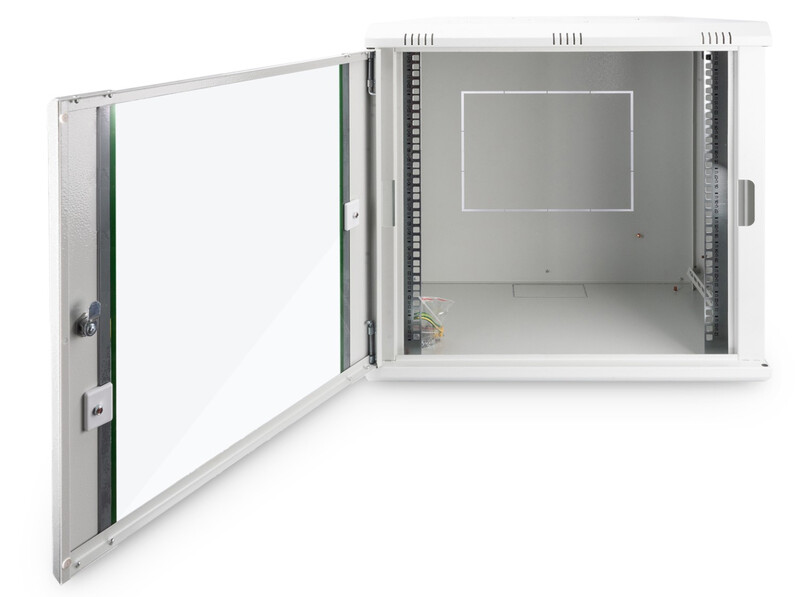

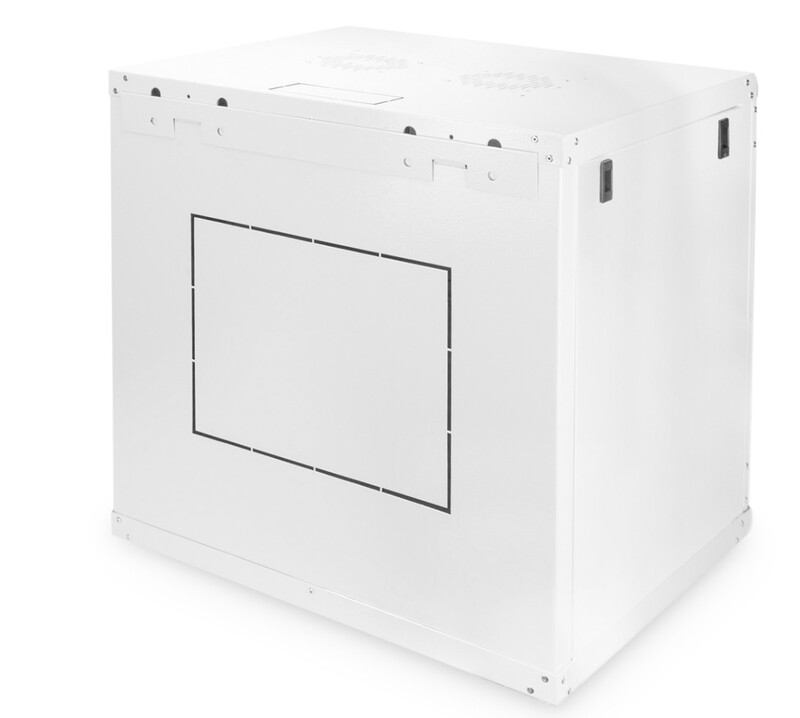

WALL CABINET 12U 600MM GLASSDOOR
Dynamic series wall-mounted network cabinets are designed for easy and cost-effective network expansion. Each cabinet’s top, bottom, and rear panel is equipped with pre-cut cable entry openings. The top structure also features a pre-cut area for installing a fan module. Inside, two pairs of zinc-coated 483 mm (19-inch) rack rails are installed, marked with height units readable from both directions. Their depth is adjustable. Each cabinet is manufactured from 1.5 mm thick steel sheet, powder-coated in standard colors: gray (RAL 7035) or black (RAL 9005).
Removable side panels and a lockable, removable front door enhance aesthetics. Door hinges can be reversed. Wall mounting is performed in two simple steps: the included mounting plate is bolted to the wall and then connected to the cabinet.
Technical specifications:- Safety class: IP20
- Lockable security door with steel frame
- 483 mm (19") zinc-coated rack rails installed on both front and rear sides
- Depth of 483 mm (19") rack rails is adjustable and marked with height units
- 0.8 - 1.2 mm thick steel sheet with high load capacity, powder-coated
- Cable entry through rear, top, and base (pre-punched cutouts)
- Top pre-prepared for fan units (pre-punched intakes)
- Ventilation openings for active and passive air exchange and exhaust
- Door opening angle: 235°
- 4 grounding points (base, side panel, and front door) with protective caps
- Device mounting depth min.-max.: 320 - 450 mm
- Cabinet type: Wall-mounted cabinet
- Color: Light gray, RAL 7035
- Depth: 600 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Height: 12U
- Width: 600 mm
- IP protection class: IP20
- Assembled: Yes
