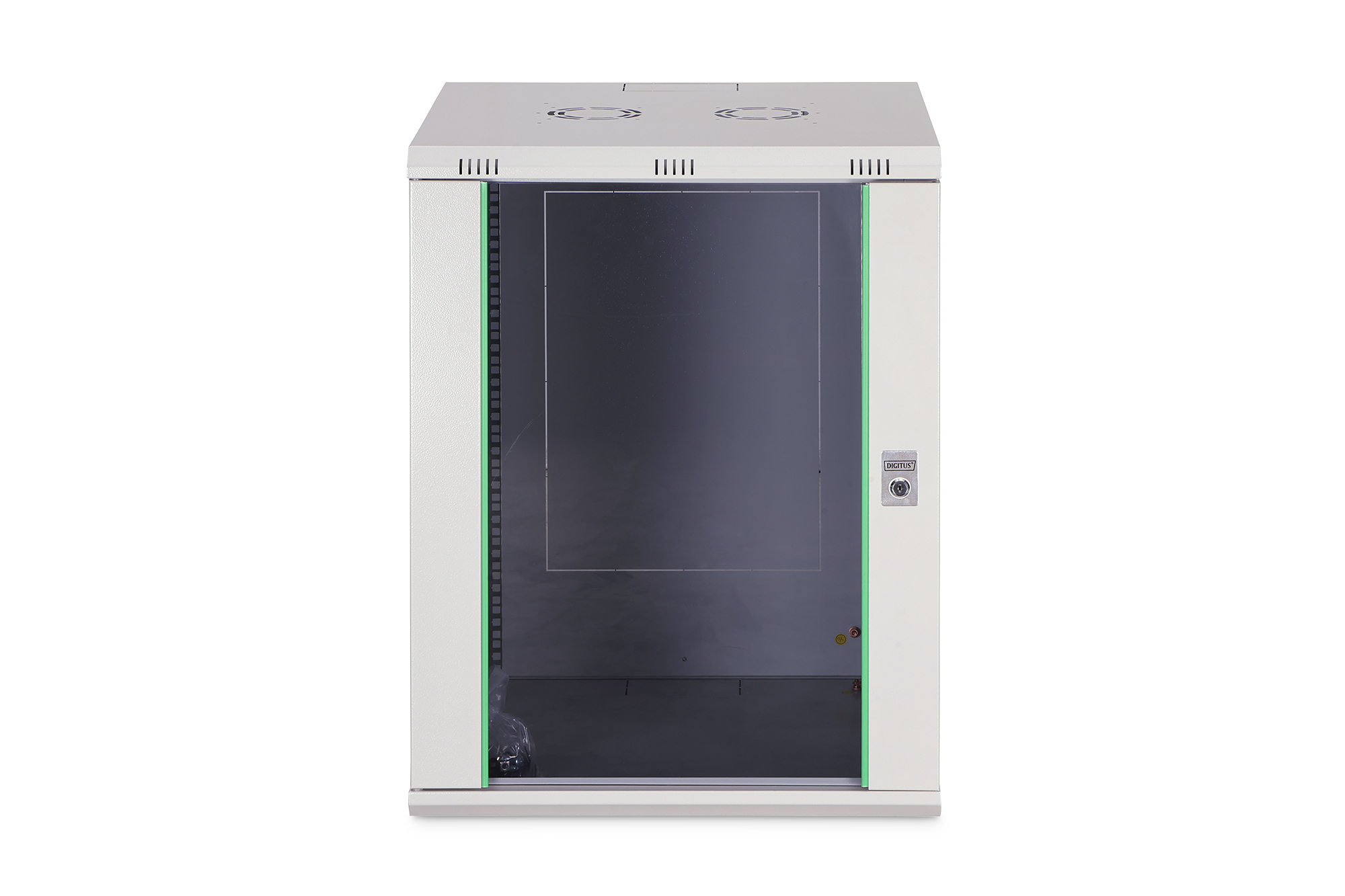

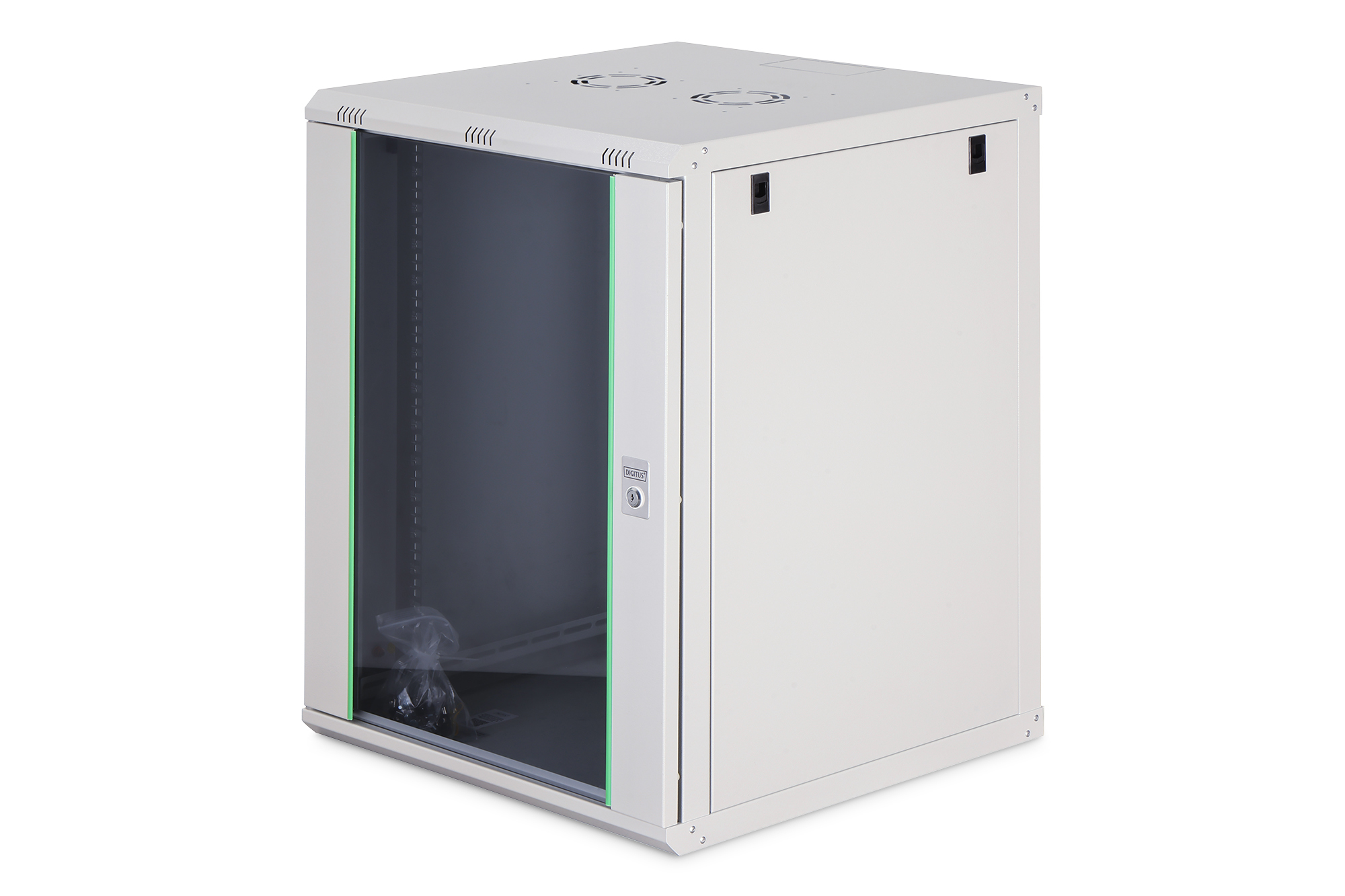

WALL CABINET 16U 600MM GLASS DOOR

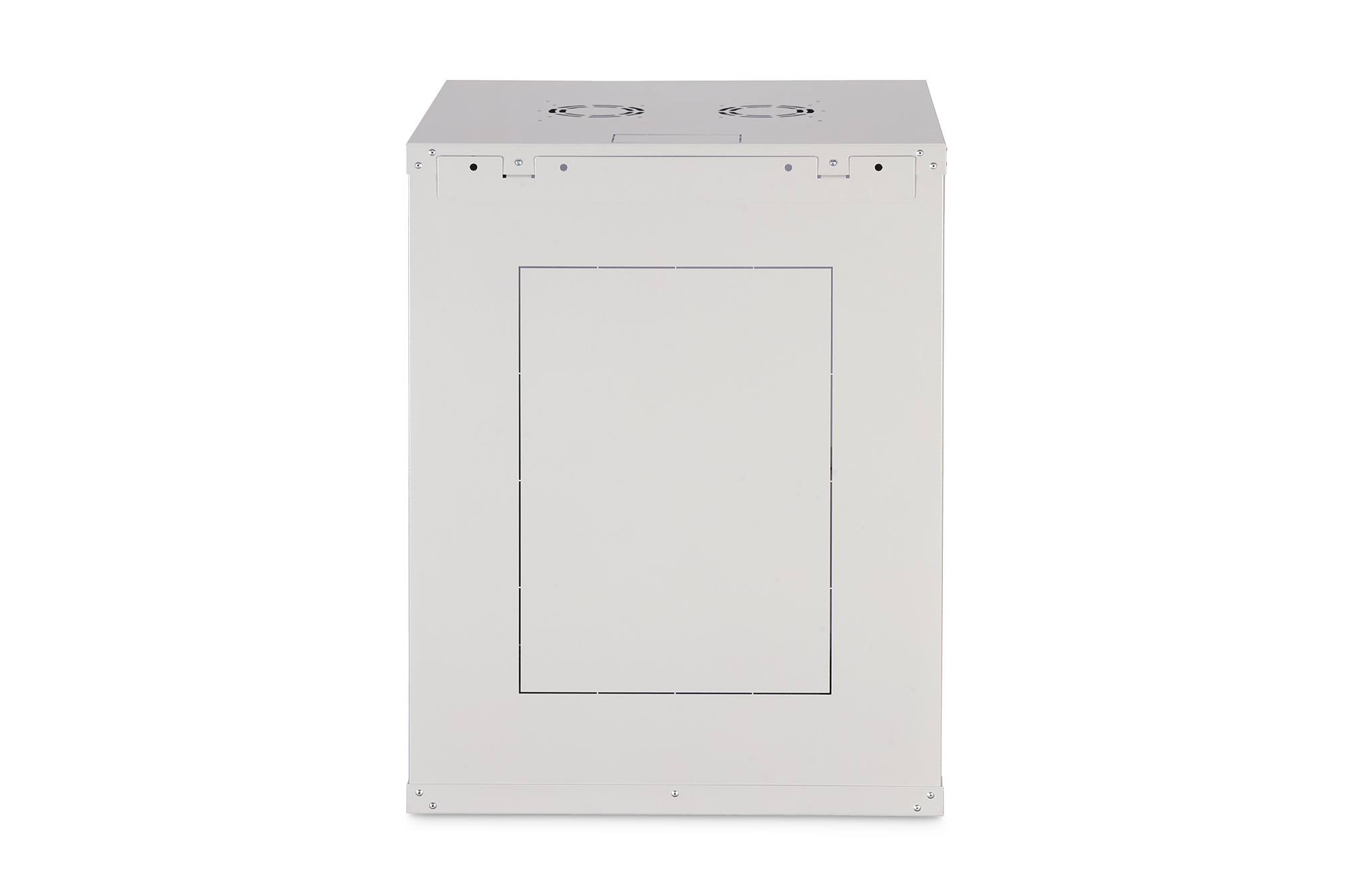

Dynamic series wall-mounted network cabinets are designed for easy and cost-effective network expansion. Each cabinet’s ceiling, floor, and rear wall are equipped with pre-cut cable entry openings. The ceiling structure also features a pre-cut area for installing the fan module. Inside, two pairs of zinc-coated 483 mm (19-inch) rack rails are installed, marked with height units readable from both directions. Their depth is adjustable. Each cabinet is manufactured from 1.5 mm thick steel sheet.

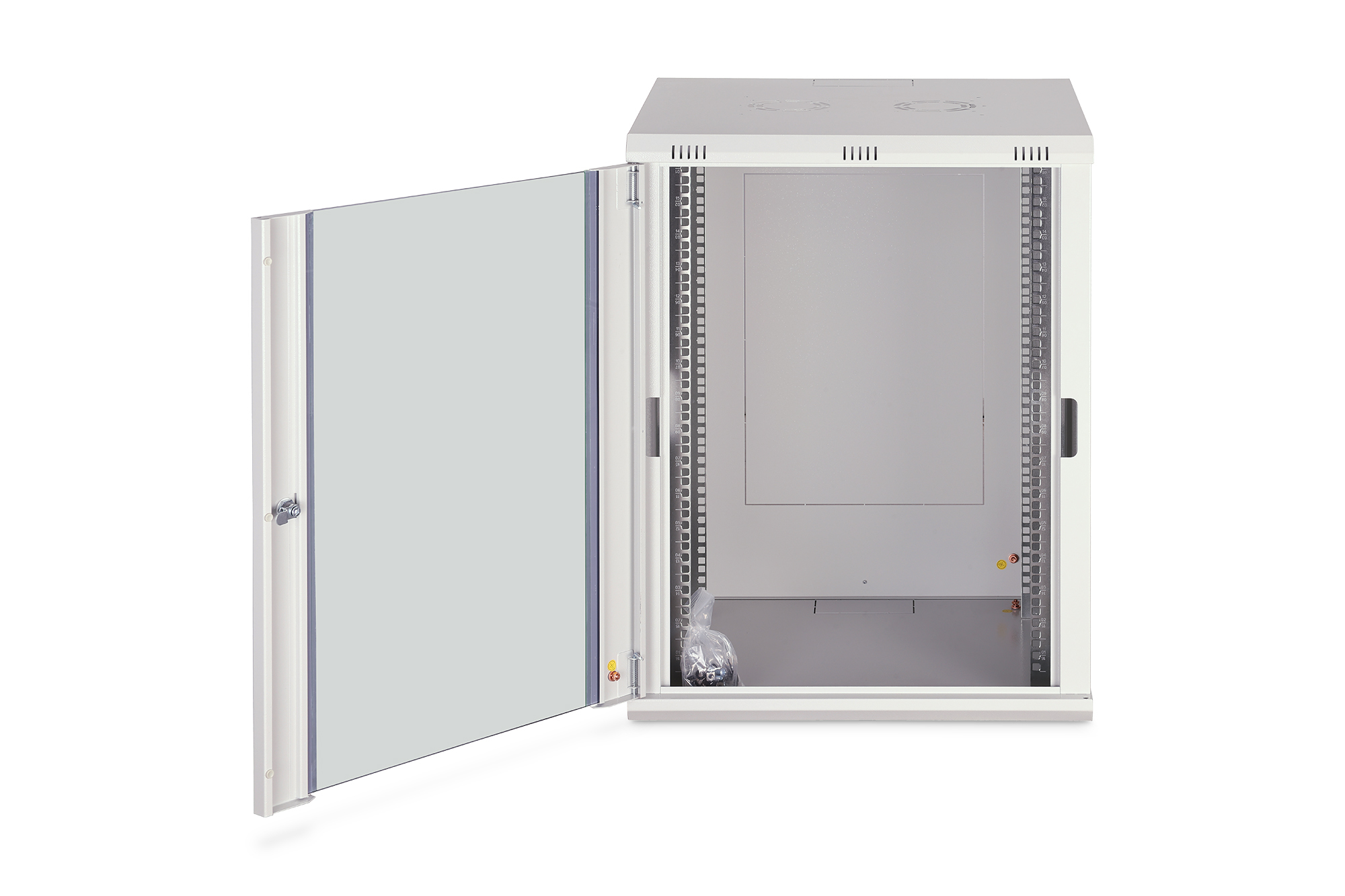

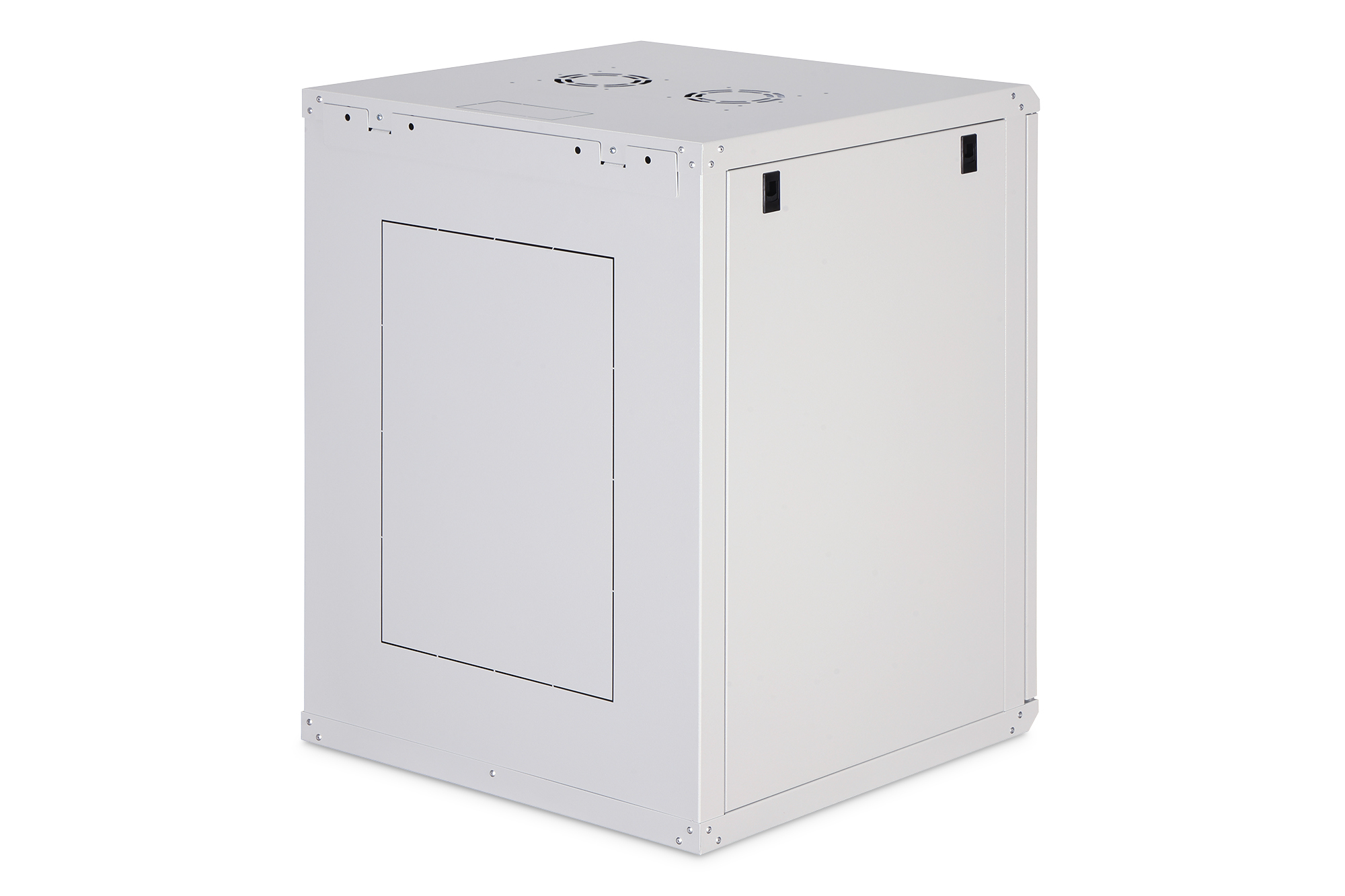

Powder-coated in standard colors: gray (RAL 7035) or black (RAL 9005). Removable side panels and a lockable, removable front door enhance aesthetics. Door hinges can be reversed. Wall mounting is performed in two simple steps: the provided mounting plate is bolted to the wall and then attached to the cabinet.
Technical specifications:- Enclosure rating: IP20
- Lockable safety glass door with steel frame
- 235° door opening angle

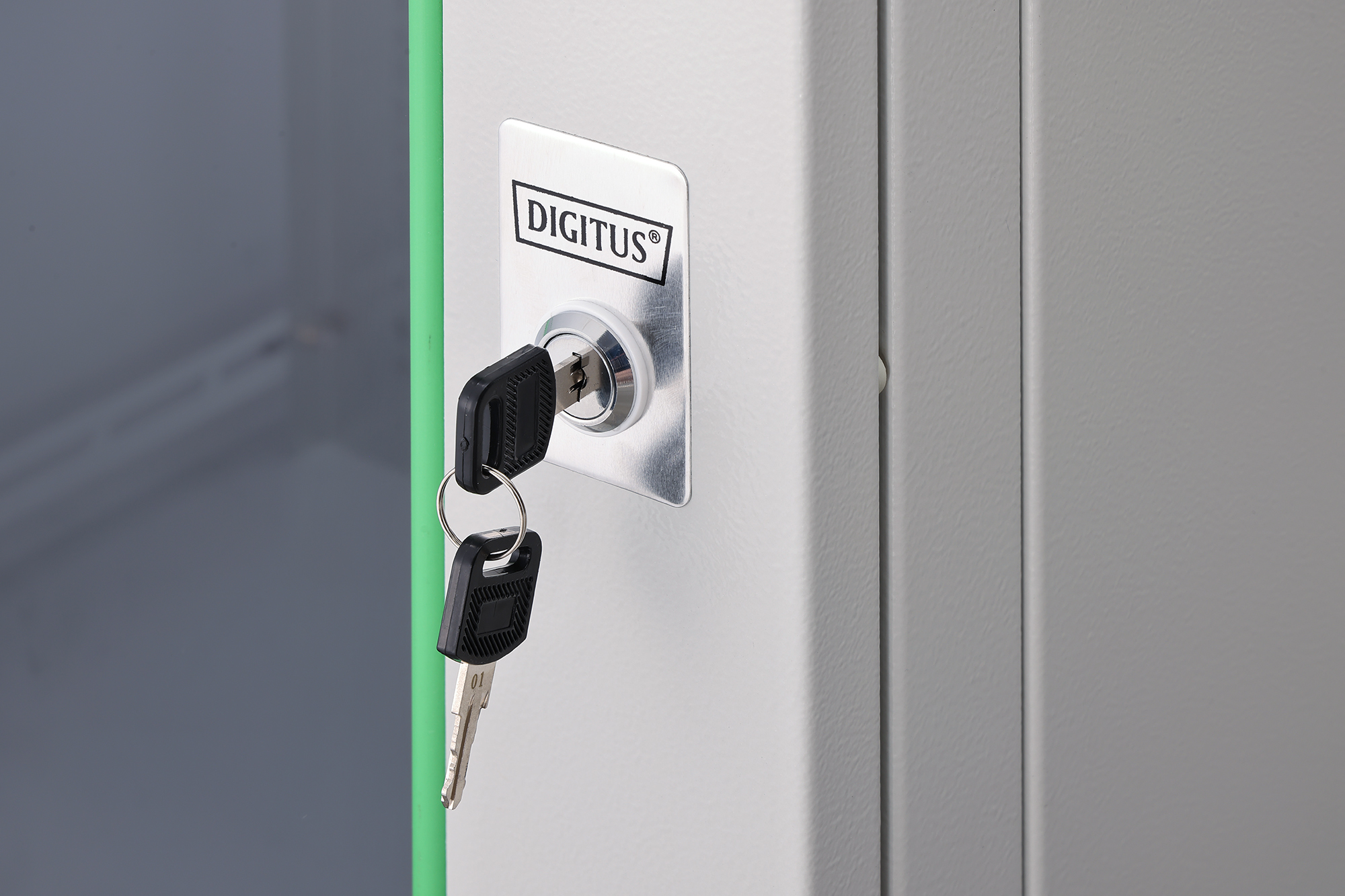

- 1-point locking mechanism on front door

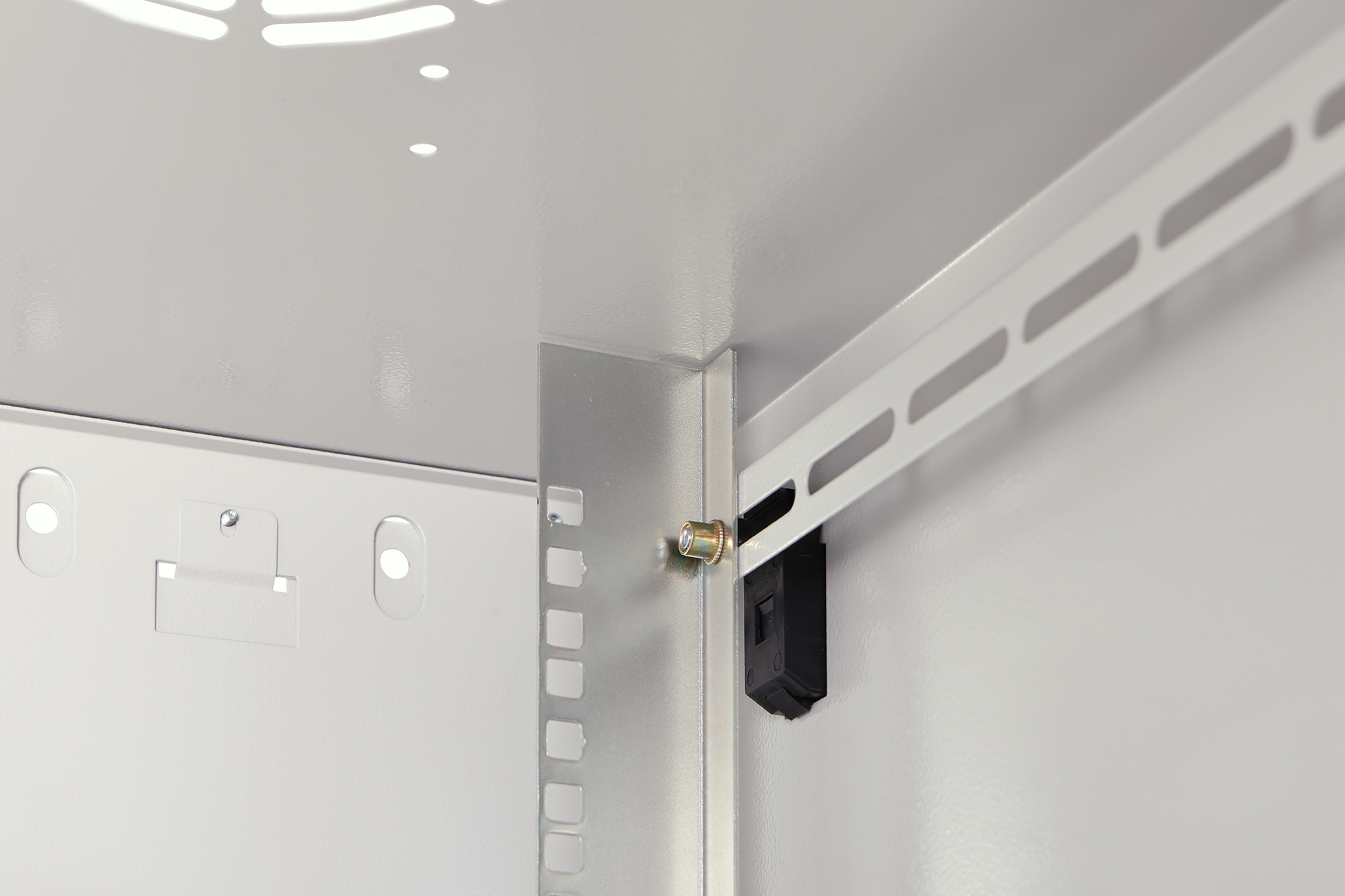

- 483 mm (19-inch) rack rails with adjustable depth and height unit markings
- 483 mm (19-inch) zinc-coated rack rails installed on both front and rear of the rack
- 0.8 - 1.2 mm thick steel sheet with high load capacity, powder-coated

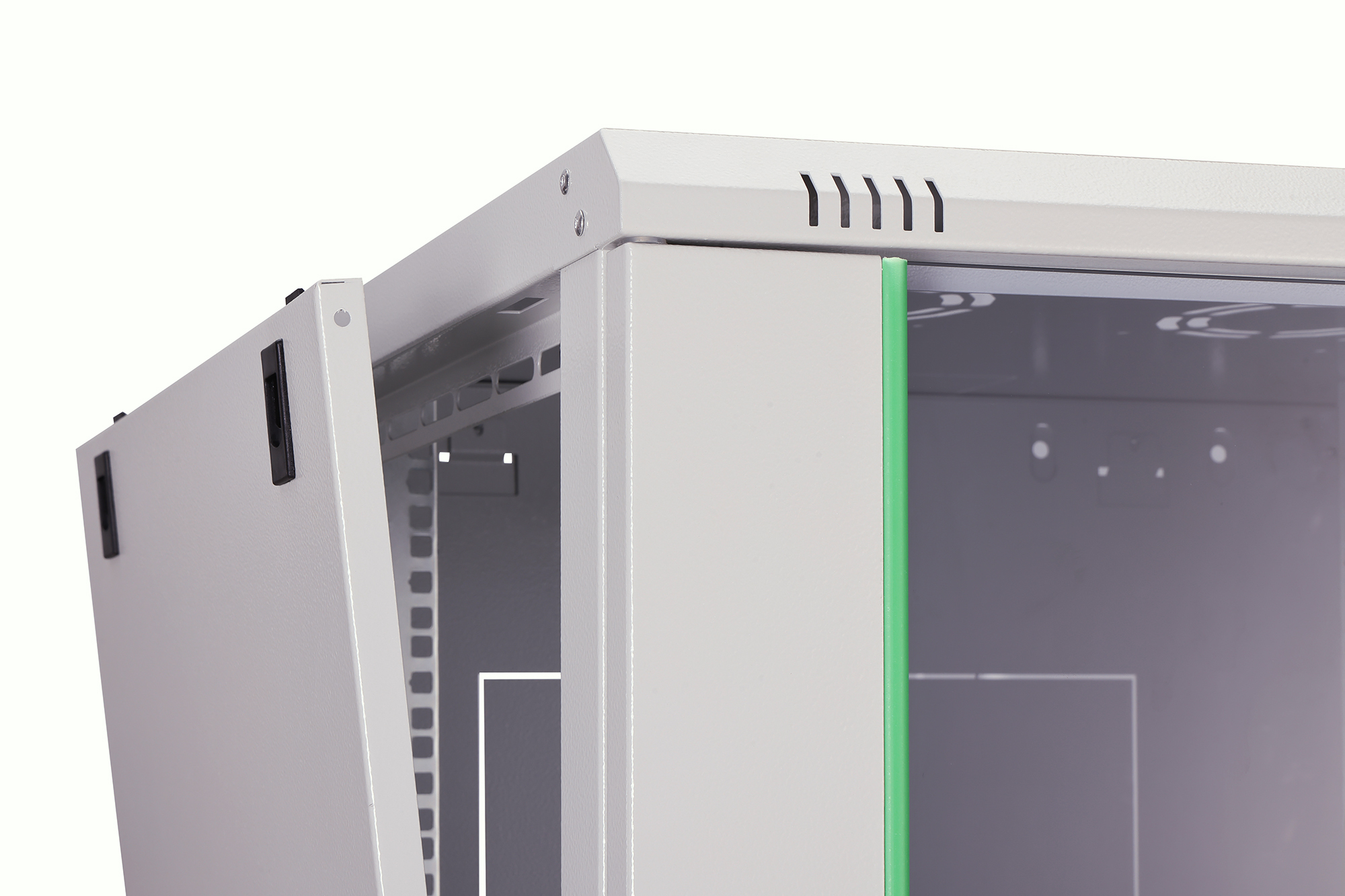

- Ceiling prepared for ventilation units (perforated inlet openings)
- Ventilation openings for active and passive air exchange and exhaust

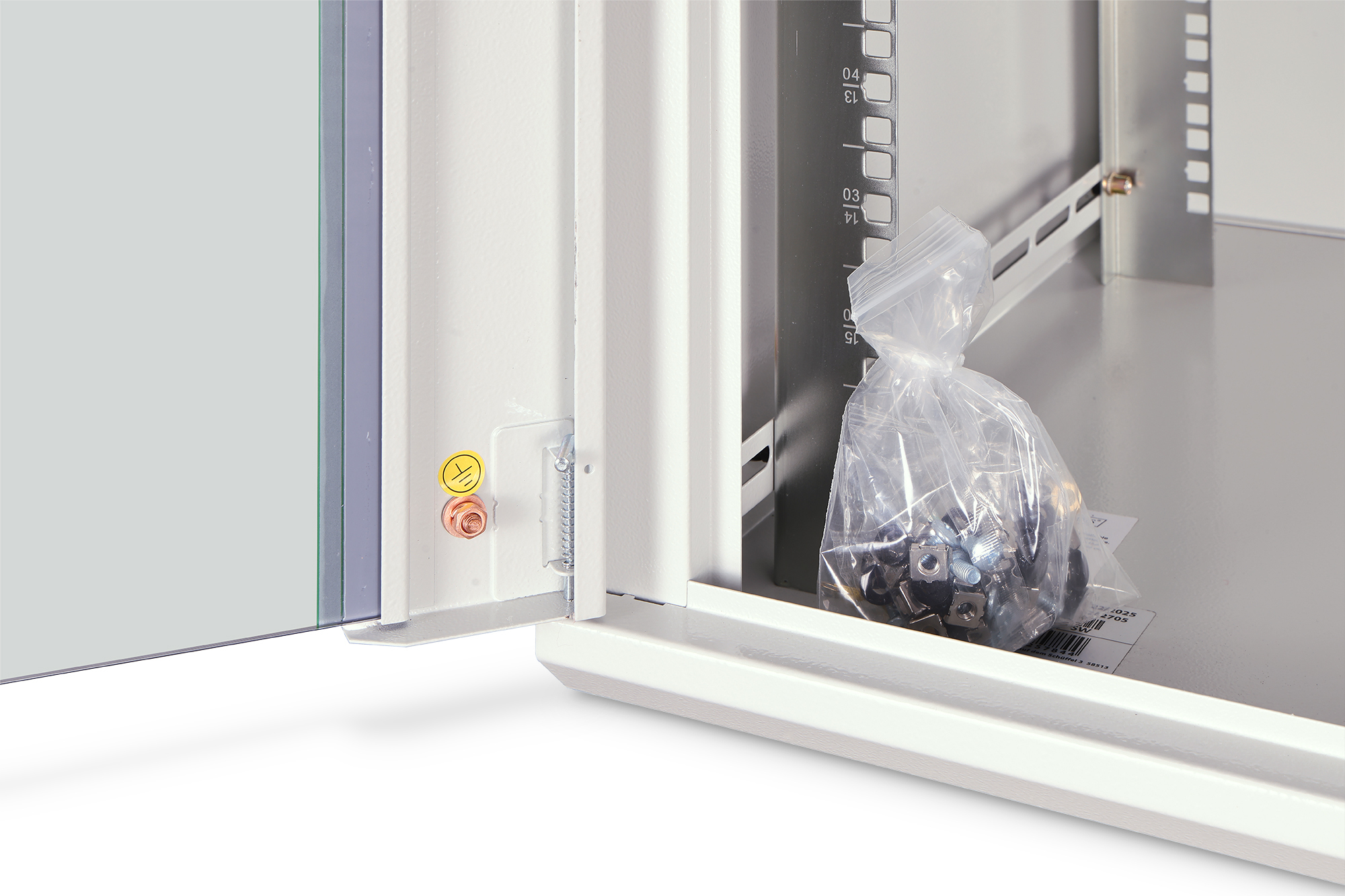

- 4 grounding points (base, side panel, and front door) with protective caps
- Equipment mounting depth min.-max.: 320 - 450 mm
- Cabinet type: Wall-mounted cabinet
- Color: Light gray, RAL 7035
- Depth: 600 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Height: 16U
- Width: 600 mm
- IP protection rating: IP20
- Pre-assembled: Yes
