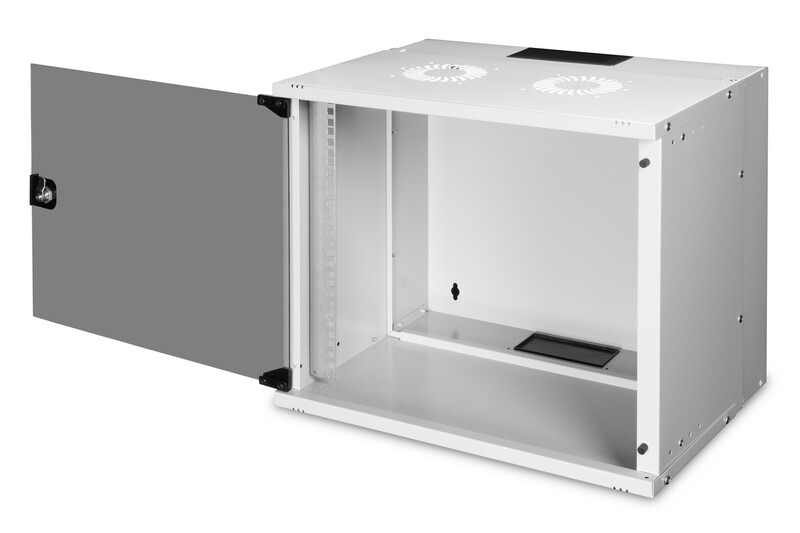

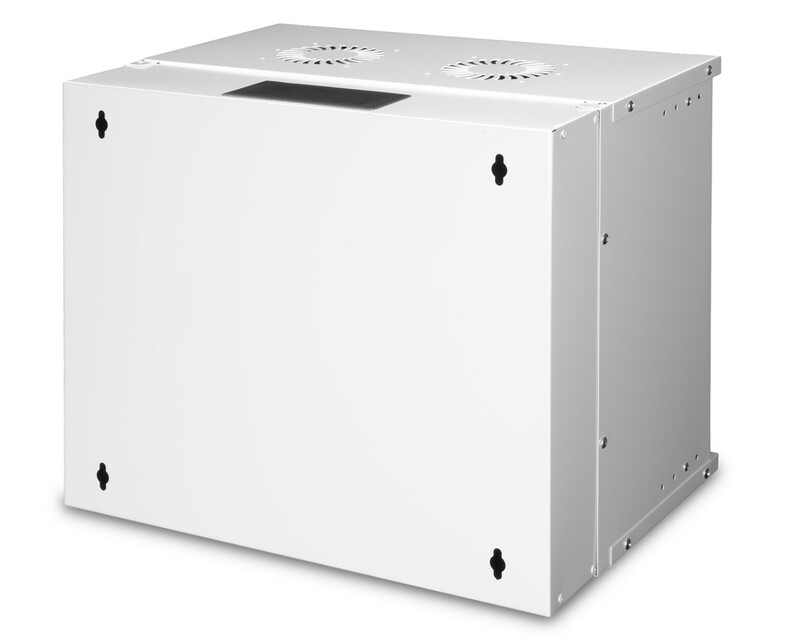

WALL CABINET 9U 400MM FLAT PACK
Whether it’s a home, office, or distribution center with limited space: the compact 483 mm (19-inch) solutions of the SOHO PRO series allow you to install your network anywhere. Available in four height units (4U, 7U, 9U, 12U), wall-mountable enclosures are equipped with a glass door and cable entry points at the top and bottom. Inside, a pair of galvanized 483 mm (19-inch) mounting rails are installed, marked with readable height units that can be adjusted as needed.
Each cabinet features a robust steel structure made from steel sheets up to 1.5 mm thick. The cabinets are powder-coated in standard colors: gray (RAL 7035) and black (RAL 9005). Door hinges are reversible. Cabinets are delivered unassembled in a compact flat package that takes up little space. Assembly involves only a few simple steps and is child’s play thanks to precise instructions.
Technical specifications:- Protection class: IP20
- Lockable safety glass door
- 200° door opening angle
- Single-point lock on front door
- 483 mm (19") mounting rails, front-mounted, zinc-coated
- Depth of 483 mm (19") mounting rails is adjustable
- 1.1 - 1.5 mm thick high-load-bearing steel sheet, powder-coated
- Cable entry through plastic grommets in roof and floor
- Ventilation openings for active and passive airflow
- Maximum component mounting depth: 327 mm
- Product dimensions (W x H x D): 460 x 540 x 400 mm
- Cabinet type: Wall-mount cabinet
- Color: Light gray, RAL 7035
- Depth: 400 mm
- Front door: Glass door, single opening
- Load capacity: 60 kg
- Side panels: Both sides
- Height: 9U
- Width: 540 mm
- IP protection class: IP20
- Assembled: No
