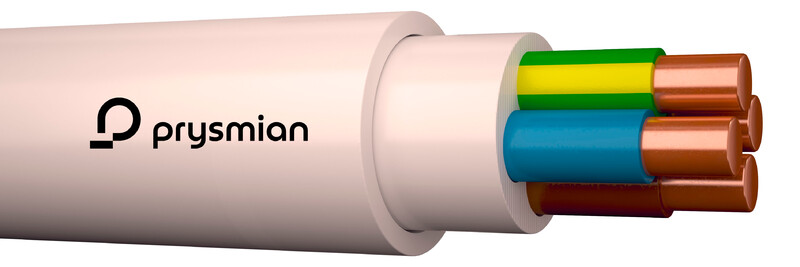

INSTALLATION CABLE MMJ 4x1,5 S K500
Product code
0456784
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C12.1 Ohm/km
Number of cores4
Twisted coresyes
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Core colourSeveral
With protective conductoryes
Product codes
SAPABM687
STK0456784
PLC0456784
GTIN/EAN6410004567845
Manufacturer part number20075554
Vendor material number0456784
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.28 l
Package weight0.009 kg
Base unitMeter
Package units1 / 500 / 500
Package contents–
UNSPSC26121641
BrandDRAKA
VendorPRYSMIAN GROUP FINLAND OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
