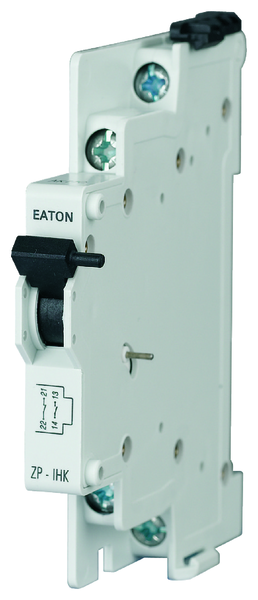

AUXILIARY CONTACT NO+NC ZP-IHK
Product code
3206970
Auxiliary contacts for circuit breakers, combination switches, and miniature circuit breakers.
Contacts 1 NO and 1 NC
Eaton products: PLS, postal Code, PKNM, ZP-A40...-ASA...IHK...WHK, Z-MS This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Auxiliary device for distribution board devices (EC001286)
Device fittingUniversal
FunctionAuxiliary switch
Width in number of modular spacings0.5
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Number of fault-signal switches0
Rated switch current3 A
Rated voltage230 V
Voltage typeAC
With auto test for earth leakage functionno
Suitable for max. number of poles main contact unit (total)2
Suitable for max. current main contact unit6 A
Product codes
SAPADJ838
STK3206970
PLC3206970
GTIN/EAN4015082860523
Manufacturer part number286052
Vendor material number286052
Basic information
Package measurements (L x W x H)85 x 70 x 14 mm
Package volume0.083 l
Package weight0.042 kg
Base uniteach
Package units1 / 4 / 120 / 2400
Package contents–
UNSPSC39121522
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
