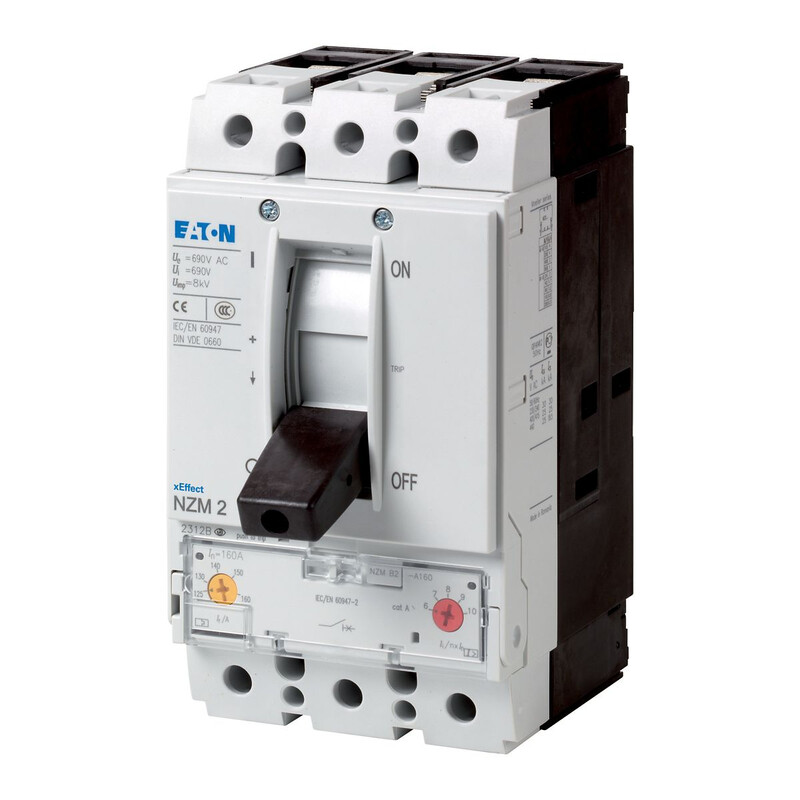

CIRCUIT BRAKER NZMH2-A80
Product code
3633860
Compact circuit breaker NZM2, 3-pole
Features
- switching capacity at 400/415 V 50 Hz (Icu): 150 kA
- rated current = rated continuous current (In = Iu): 80 A
- installation type: fixed
- screw connection
- standard/certification: IEC
- protection function: system and conductor protection
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu80 A
Rated voltage690-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz25 kA
Overload release current setting63-80 A
Adjustment range undelayed short-circuit release480-800 A
Power loss20.5 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalyes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPACE003
STK3633860
PLC3633860
GTIN/EAN4015082590987
Manufacturer part number259098
Vendor material number259098
Basic information
Package measurements (L x W x H)142 x 105 x 185 mm
Package volume2.758 l
Package weight2.34 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121616
BrandEATON
VendorEATON ELECTRIC OY
