CIRCUIT-BREAKER, 3-POLE, CIRC.PROTECTION, ICU=50KA, IU=
Product code
3633817

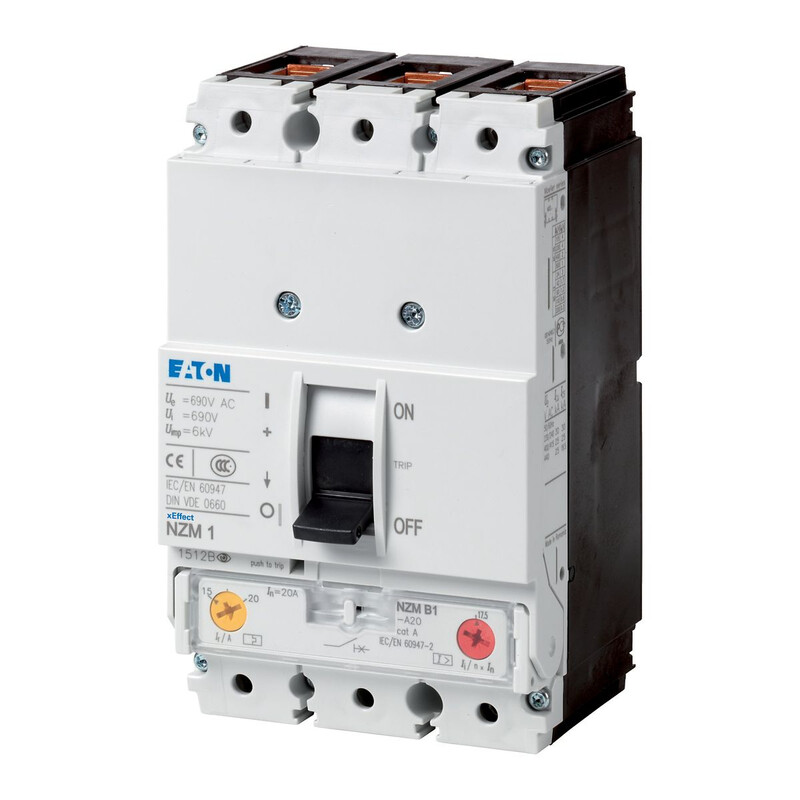

Eaton NZM1 series circuit breaker, 3-pole, for protection of cables and equipment. 25-32A, Ics 50kA 415 V 50/60Hz. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu32 A
Rated voltage690-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting25-32 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release350-350 A
Power loss9.3 W
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitFrame clamp
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalyes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Product codes
SAPHCZ048
STK3633817
PLC3633817
GTIN/EAN4015082812331
Manufacturer part number281233
Vendor material number281233
Basic information
Package measurements (L x W x H)151 x 95 x 106 mm
Package volume1.521 l
Package weight1.06 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121616
BrandEATON
VendorEATON ELECTRIC OY
