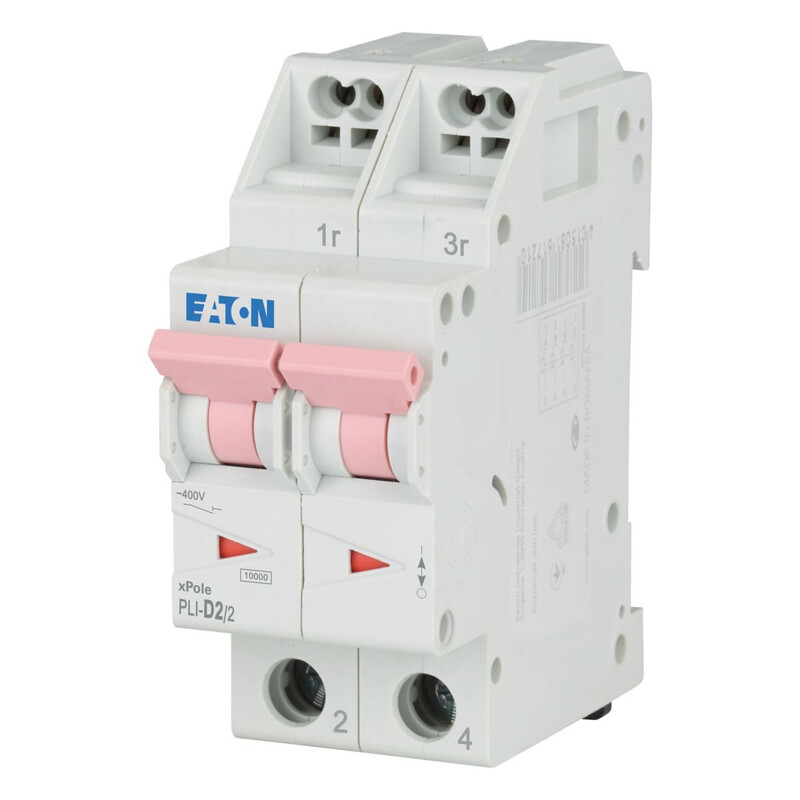

CIRCUIT BREAKER PLI-D2/2, 10KA 2-NAP D 2A
Product code
3271735
No product description available.
Product details
Technical specifications
Built-in depth70.5 mm
Release characteristicD
Number of poles (total)2
Number of protected poles2
Rated current2 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0 kA
Frequency50 ... 60 Hz
Power loss2.2 W
Product codes
SAPAIY557
PLC3271735
STK3271735
GTIN/EAN4015081012367
Manufacturer part number101301
Vendor material number101301
Basic information
Package measurements (L x W x H)90 x 35 x 80 mm
Package volume0.252 l
Package weight0.24 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121603
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
