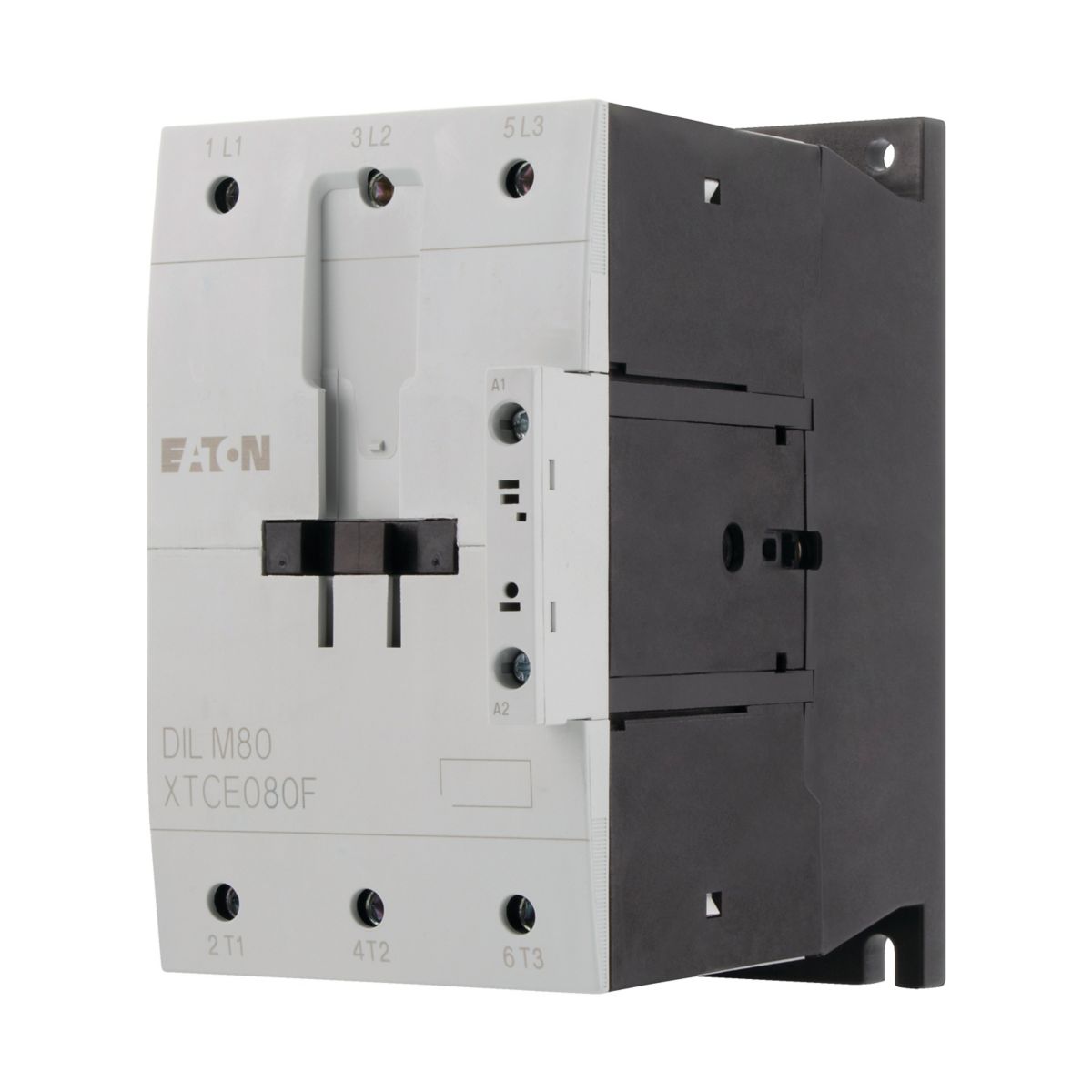

CONTACTOR DILM80(110V50HZ,120V60HZ)

Name: CONTACTOR DILM80(110V50HZ,120V60HZ)
Brand: EATON
SKU: ADZ770

Product code

3833190

No product description available.

Product details

Rated control supply voltage AC 50 Hz110 ... 110 V

Rated control supply voltage AC 60 Hz120 ... 120 V

Voltage type for actuatingAC

Number of normally closed contacts as main contact0

Number of normally open contacts as main contact3

Type of electrical connection of main circuitScrew connection

Operating voltage AC 50 Hz230 ... 690 V

Operating voltage AC 60 Hz230 ... 690 V

Rated operation current Ie at AC-1, 400 V110 A

Rated operation current Ie at AC-3, 400 V80 A

Rated operation power at AC-3, 400 V37 kW

Rated operation current Ie at AC-4, 400 V40 A

Rated operation power at AC-4, 400 V20 kW

Rated operation power NEMA44.7 kW

Number of auxiliary contacts as normally open contact0

SAPADZ770

PLC3833190

STK3833190

GTIN/EAN4015082393991

Manufacturer part number239399

Vendor material number239399

Package measurements (L x W x H)159 x 90 x 170 mm

Package volume2.433 l

Package weight2.18 kg

Base uniteach

Package units1

Package contents–

UNSPSC39121529

BrandEATON

VendorEATON ELECTRIC OY

The country of origin stated by the supplierFinland
