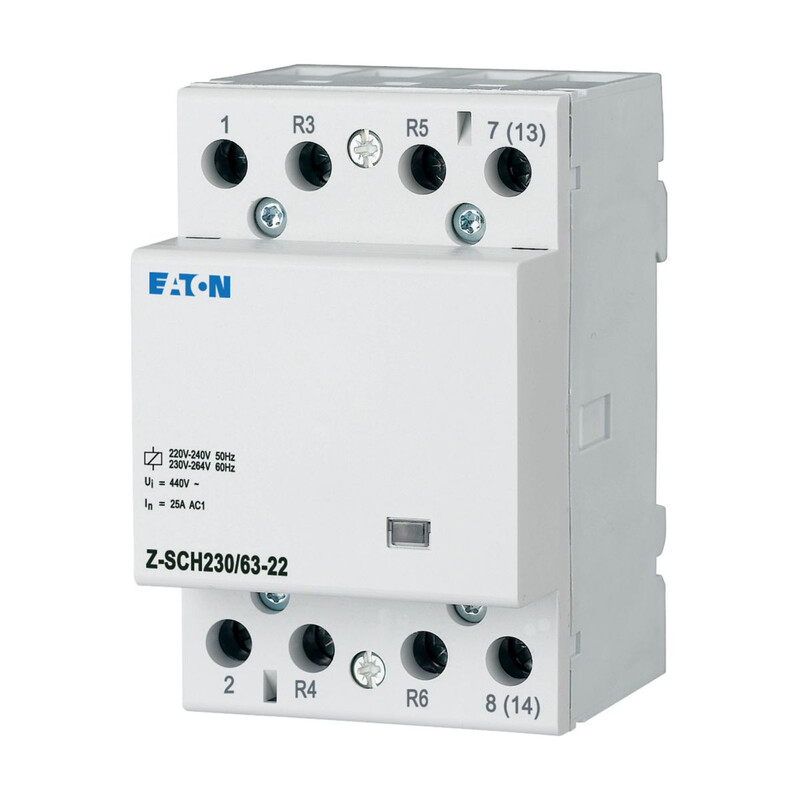

CONTACTOR Z-SCH230/63-22
Product code
3731242
Z-SCH Module Contactors
- Switching of single-phase and three-phase loads: lighting, electric heating, ventilation, heat pumps, automatic doors, curtains, etc.
- Contacts rated voltage 440VAC
- Conductor cross-section for switching 2.5-25 mm2
- Coil rated voltage 24VAC, 230VAC
Product details
Technical specifications
Product class (ETIM)Installation contactor for distribution board (EC001653)
Rated operating voltage440-440 V
Rated operation current63 A
Utilization category according to EN IEC 60947-4-1AC-1
Rated excitation voltage230-230 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact2
Number of contacts as normally closed contact2
Max. incandescent lamp load7740 W
Max. load fluorescent lamp4060 VA
Max. load fluorescent lamp (Duo circuit)8120 VA
Max. load fluorescent lamp (parallel compensated)2668 VA
Slider for hand switchno
Width in number of modular spacings3
Built-in depth60 mm
Product codes
SAPACC116
STK3731242
PLC3731242
GTIN/EAN4015082488574
Manufacturer part number248857
Vendor material number248857
Basic information
Package measurements (L x W x H)94 x 79 x 57 mm
Package volume0.423 l
Package weight0.372 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC39121529
BrandEATON
VendorEATON ELECTRIC OY
