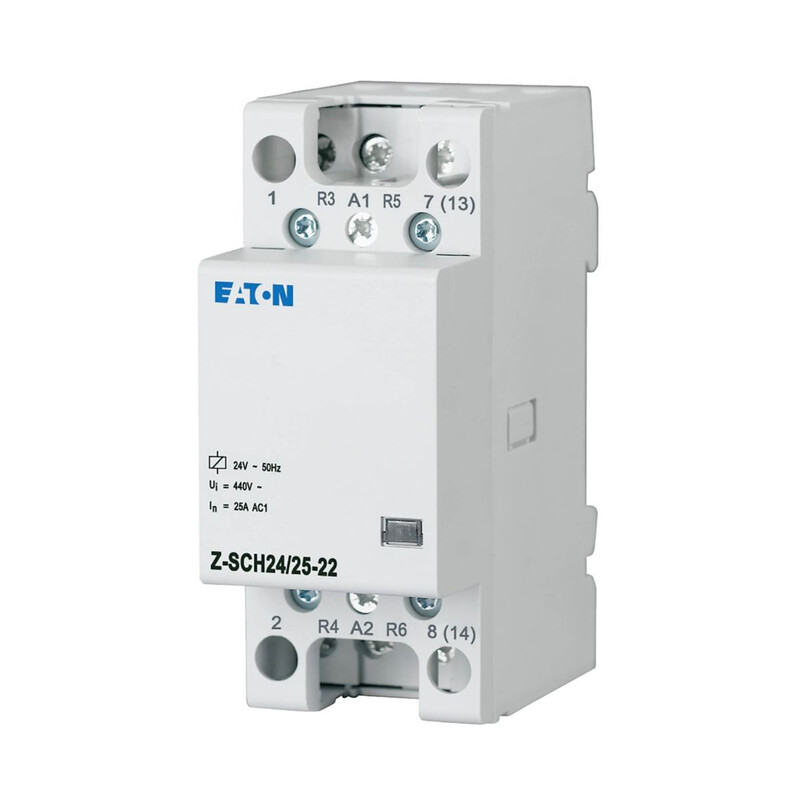

CONTACTOR Z-SCH24/25-22
Product code
3731235
Z-SCH Module Contactors
- Switching of single-phase and three-phase loads: lighting, electric heating, ventilation, heat pumps, automatic doors, curtains, etc.
- Contacts rated voltage 440VAC
- Conductor cross-section for switching 2.5-25 mm2
- Coil rated voltage 24VAC, 230VAC
Product details
Technical specifications
Product class (ETIM)Installation contactor for distribution board (EC001653)
Rated operating voltage440-440 V
Rated operation current25 A
Utilization category according to EN IEC 60947-4-1AC-1
Rated excitation voltage24-24 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact2
Number of contacts as normally closed contact2
Max. incandescent lamp load3000 W
Max. load fluorescent lamp1160 VA
Max. load fluorescent lamp (Duo circuit)2552 VA
Max. load fluorescent lamp (parallel compensated)1044 VA
Slider for hand switchno
Width in number of modular spacings2
Built-in depth60 mm
Product codes
SAPACC110
STK3731235
PLC3731235
GTIN/EAN4015082488505
Manufacturer part number248850
Vendor material number248850
Basic information
Package measurements (L x W x H)97 x 38 x 77 mm
Package volume0.284 l
Package weight0.222 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39121529
BrandEATON
VendorEATON ELECTRIC OY
