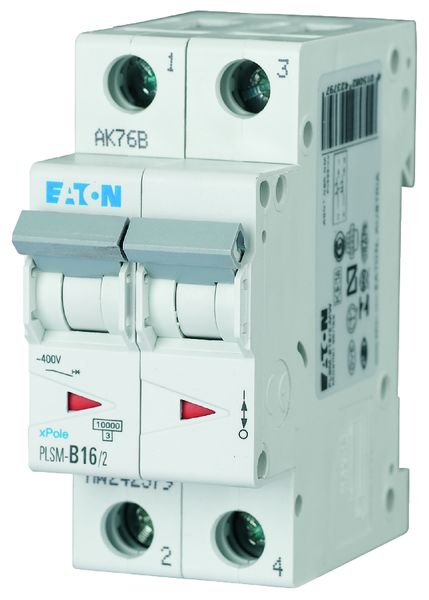

MINIATURE CIRCUIT BRAKER PLSM-D16/2
Product code
3270263
PLS6 and PLSM Circuit Breakers
Short-circuit breaking capacity:
- PLS6: IEC/EN 60898-1, 6kA
- PLSM: IEC/EN 60898-1, 10kA
- Rated voltage 230/400VAC,
48VDC/pole.
- Tripping curves: B, C and D PLS6 and PLSM miniature circuit breakers are protective devices equipped with both thermal and electromagnetic tripping, available in 1-, 2-, 3-, 4-, 1+N-, and 3+N-pole versions. These Eaton miniature circuit breakers are compatible with AC and DC applications up to 48 V, with rated currents from 0.16 A to 63 A, and are available with tripping characteristics B, C, and D. The switching capacity of PLS6 is 6 kA and that of PLSM is 10 kA. This product description is an automated translation of the original Finnish description.
Short-circuit breaking capacity:
- PLS6: IEC/EN 60898-1, 6kA
- PLSM: IEC/EN 60898-1, 10kA
- Rated voltage 230/400VAC,
48VDC/pole.
- Tripping curves: B, C and D PLS6 and PLSM miniature circuit breakers are protective devices equipped with both thermal and electromagnetic tripping, available in 1-, 2-, 3-, 4-, 1+N-, and 3+N-pole versions. These Eaton miniature circuit breakers are compatible with AC and DC applications up to 48 V, with rated currents from 0.16 A to 63 A, and are available with tripping characteristics B, C, and D. The switching capacity of PLS6 is 6 kA and that of PLSM is 10 kA. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70.5 mm
Release characteristicD
Number of poles (total)2
Number of protected poles2
Rated current16 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0 kA
Frequency50-60 Hz
Power loss4.8 W
Product codes
SAPACB965
STK3270263
PLC3270263
GTIN/EAN4015082424282
Manufacturer part number242428
Vendor material number242428
Basic information
Package measurements (L x W x H)80 x 35 x 75 mm
Package volume0.21 l
Package weight0.21 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39121603
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
