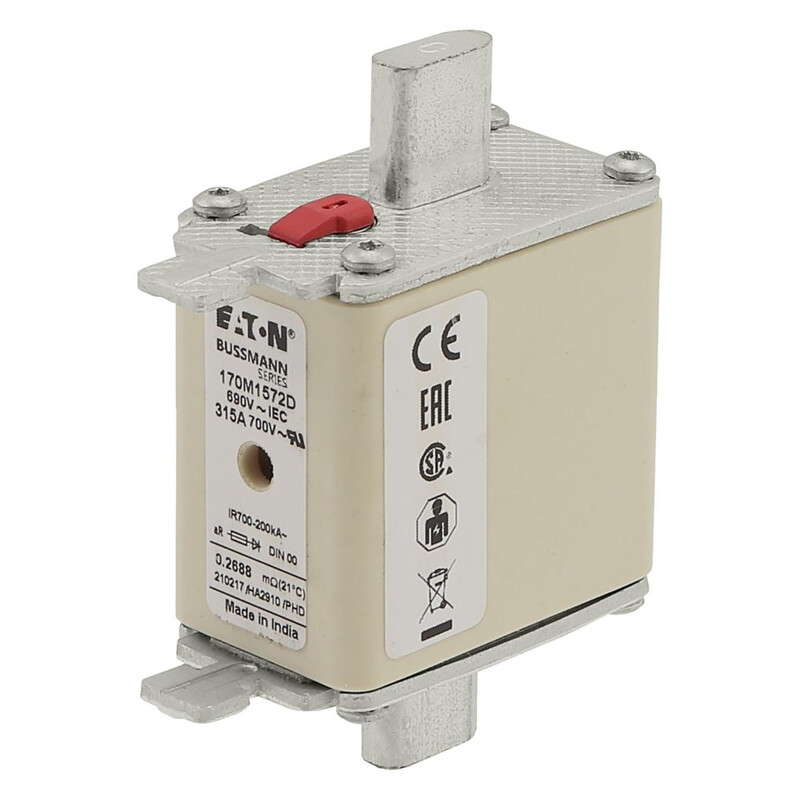

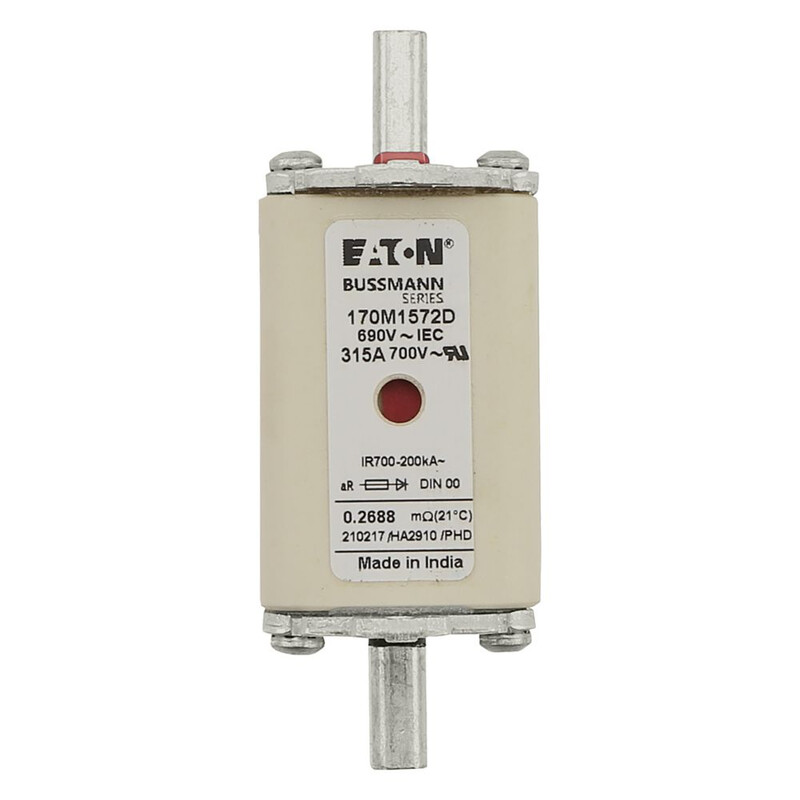

HIGH SPEED FUSE 170M1572D 690V 315A 00
Product code
3115444
FUSE 315A 690V aR DIN 00 HSDNH
Special fast-acting fuse, 315 A, 690 VAC, DIN 00, aR, IEC, double indication, live interchangeable terminals. The aR-class fuse is intended for example for frequency converter short-circuit protection. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Knife blade fuse (EC000055)
Fuse construction type according to IEC 60269NH00
Rated current315 A
Rated voltage AC690 V
Rated switching capacity AC200 kA
Utilization category according to IEC 60269aR
Type of fuse status indicatorCombination fuse status indicator
Insulated metal gripping lugs (IMGL)no
Product codes
SAPAIR615
STK3115444
PLC3115444
GTIN/EAN5027590441421
Manufacturer part number170M1572D
Vendor material number170M1572D
Basic information
Package measurements (L x W x H)80 x 60 x 30 mm
Package volume0.144 l
Package weight0.19 kg
Base uniteach
Package units1 / 6 / 60 / 1920
Package contents–
UNSPSC39121617
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
