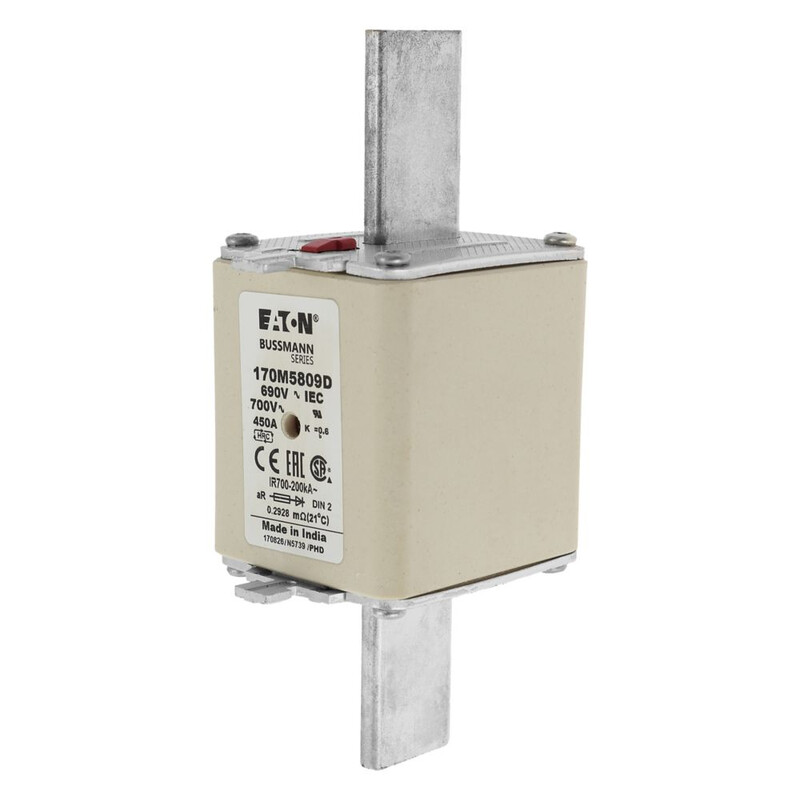

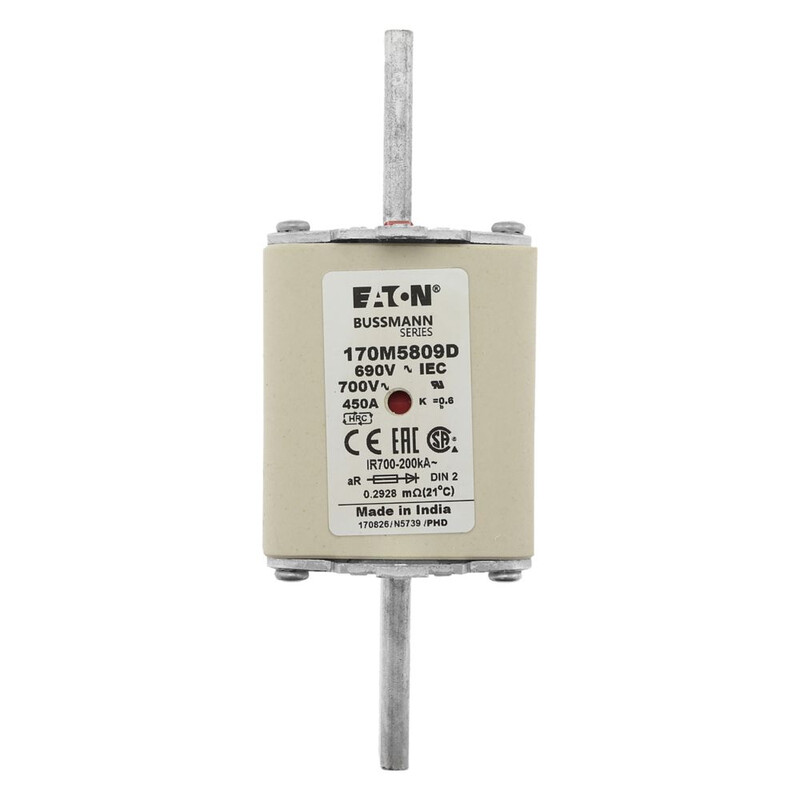

HIGH SPEED FUSE 170M5809D 690V 450A 2
Product code
3115463
Fuse-link, high speed, 450 A, AC 690 V, DIN 2, aR, DIN, IEC, dual indicator, live gripping lugs
Fuse, Fuse-link, high speed, 450 A, AC 690 V, DIN 2, aR, DIN, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, indicator style T for microswitch, semiconductor protection, DIN 43620, IEC 60269-4, Breaking Capacity 200 kA
Product details
Technical specifications
Fuse system according to IEC 60269Other
Fuse construction type according to IEC 602692
Type of currentAC
Rated voltage AC690 V
Rated current450 A
Utilization categoryaR (accompanied semiconductor protection)
Breaking capacity200 kA
Colour codeNone
Type of fuse status indicatorCombination fuse status indicator
Power loss at rated current32 W
Product codes
SAPAIT514
PLC3115463
STK3115463
GTIN/EAN5027590252522
Manufacturer part number170M5809D
Vendor material number170M5809D
Basic information
Package measurements (L x W x H)150 x 73 x 53 mm
Package volume0.58 l
Package weight0.61 kg
Base uniteach
Package units1 / 3 / 15 / 480
Package contents–
UNSPSC39121617
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
