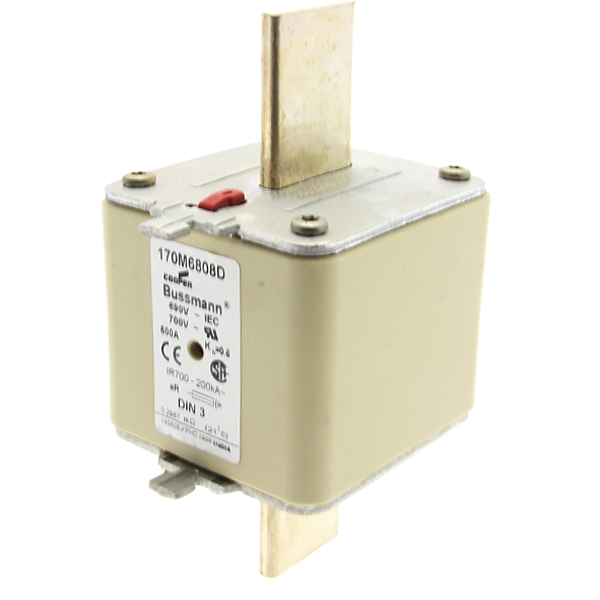

HIGH SPEED FUSE 170M6808D 690V 500A 3
Product code
3115472
FUSE 500A 690V aR DIN 3 HSDNH
Special fast-acting fuses Special fast-acting fuses are widely used in various variable frequency drive applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Knife blade fuse (EC000055)
Fuse construction type according to IEC 60269NH3
Rated current500 A
Rated voltage AC690 V
Rated switching capacity AC200 kA
Utilization category according to IEC 60269aR
Type of fuse status indicatorCombination fuse status indicator
Insulated metal gripping lugs (IMGL)no
Product codes
SAPAIN209
STK3115472
PLC3115472
GTIN/EAN5027590252614
Manufacturer part number170M6808D
Vendor material number170M6808D
Basic information
Package measurements (L x W x H)170 x 95 x 75 mm
Package volume1.211 l
Package weight1.12 kg
Base uniteach
Package units1 / 12 / 384
Package contents–
UNSPSC39121617
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
