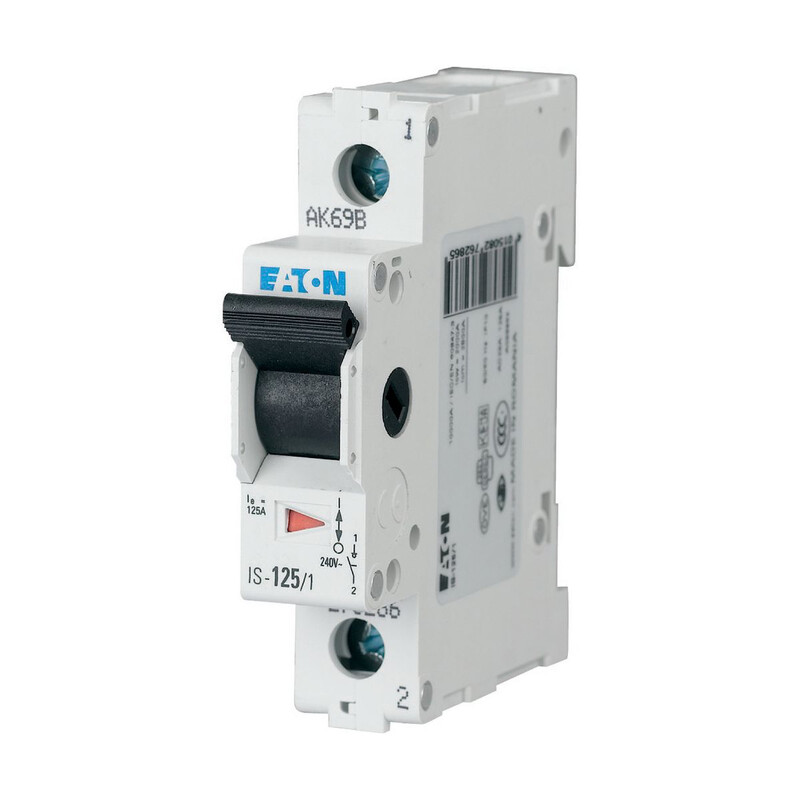

MAIN SWITCH IS-125/1
Product code
3609190
Isolators IS
Rated voltage 240/415 VAC
Short-circuit withstand:
Cross-sectional area of connected conductor 2.5-50 mm² This product description is an automated translation of the original Finnish description.
Rated voltage 240/415 VAC
Short-circuit withstand:
- 12.5 kA (In 16-80 A)
- 6 kA (In 100-125 A)
Cross-sectional area of connected conductor 2.5-50 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Main switch for distribution board (EC001545)
Switching functionOther
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Number of poles1
Rated current125 A
Rated voltage240 V
Min. rated voltage240 V
Rated switching capacity0 kA
Short-circuit breaking capacity (Icw)2 kA
Voltage typeAC
With signal lampno
Colour calotteOther
Lamp typeOther
Lamp socketOther
Product codes
SAPADJ834
STK3609190
PLC3609190
GTIN/EAN4015082762865
Manufacturer part number276286
Vendor material number276286
Basic information
Package measurements (L x W x H)84 x 72 x 18 mm
Package volume0.109 l
Package weight0.1 kg
Base uniteach
Package units1 / 12 / 120
Package contents–
UNSPSC39121601
BrandEATON
VendorEATON ELECTRIC OY
