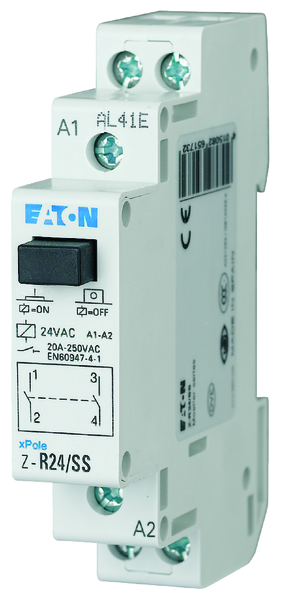

INTERMEDIATE RELAY Z-R24/SS, 2SULK. 24V50HZ
Product code
3587512
No product description available.
Product details
Technical specifications
Product class (ETIM)Installation relay (EC001652)
FunctionMechanical
Mounting methodDIN rail
Width in number of modular spacings1
Built-in depth60 mm
Number of contacts as normally open contact2
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Control voltage 124 - 24 V
Type of control voltage 1AC
Frequency control voltage 150 - 50 Hz
Control voltage 20 - 0 V
Type of control voltage 2AC/DC
Frequency control voltage 20 - 0 Hz
Rated current20 A
Supply voltage250 - 250 V
Product codes
SAPACN347
STK3587512
PLC3587512
GTIN/EAN4015082651732
Manufacturer part number265173
Vendor material number265173
