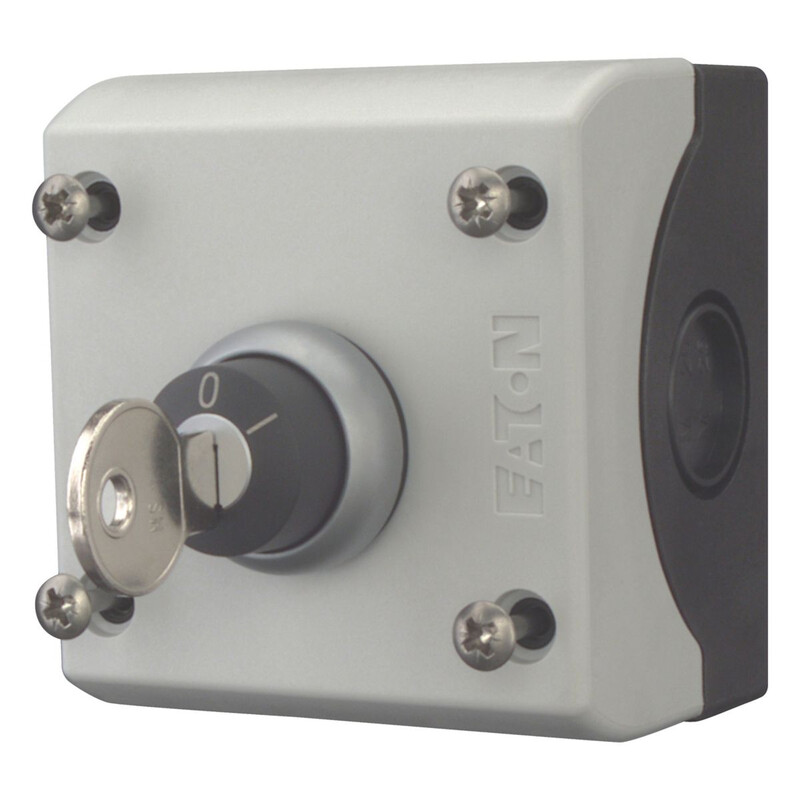

KEY SWITCH RMQ-TITAN M22-WRS/KC11/I
Product code
2335013
bEaton RMQ - Titan series includes a wide range of control and signaling devices suitable for the most demanding applications/b
The modular design of the devices enables the assembly of numerous different systems using only a few basic components. This reduces logistics costs and capital tied up in inventory. The components of the RMQ-Titan series are high-quality and belong to high IP ratings - IP67 and IP69K.
All signal lights use LED technology, ensuring low energy consumption, long service life (up to 100,000 hours of continuous operation), and excellent vibration resistance.
Using the LabelEditor specialized software, customers can order custom graphical markings for RMQ-Titan series components, which are manufactured by laser engraving at the factory.
A wide range of emergency stop buttons, including switching indicators, contact elements with various configurations, key switches, and illuminated button rings, ensures safe device shutdown and excellent visibility of emergency stop buttons in industrial environments. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Control circuit devices combination in enclosure (EC000225)
Number of command positions1
Number of push buttons0
Number of indicator lights0
Number of key switches1
Number of selector switches1
Number of mushroom-shaped push-buttons0
Suitable for emergency stopno
Rated control supply voltage AC 50 Hz115-500 V
Rated control supply voltage AC 60 Hz115-500 V
Rated control supply voltage DC24-220 V
Colour housing coverGrey
Housing colourGrey
Housing materialPlastic
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Product codes
SAPHDB570
STK2335013
PLC2335013
GTIN/EAN4015082165260
Manufacturer part number216526
Vendor material number2335013
Basic information
Package measurements (L x W x H)115 x 85 x 75 mm
Package volume0.733 l
Package weight0.214 kg
Base unitSet
Package units1
Package contents–
UNSPSC39122205
BrandEATON
VendorEATON ELECTRIC OY
