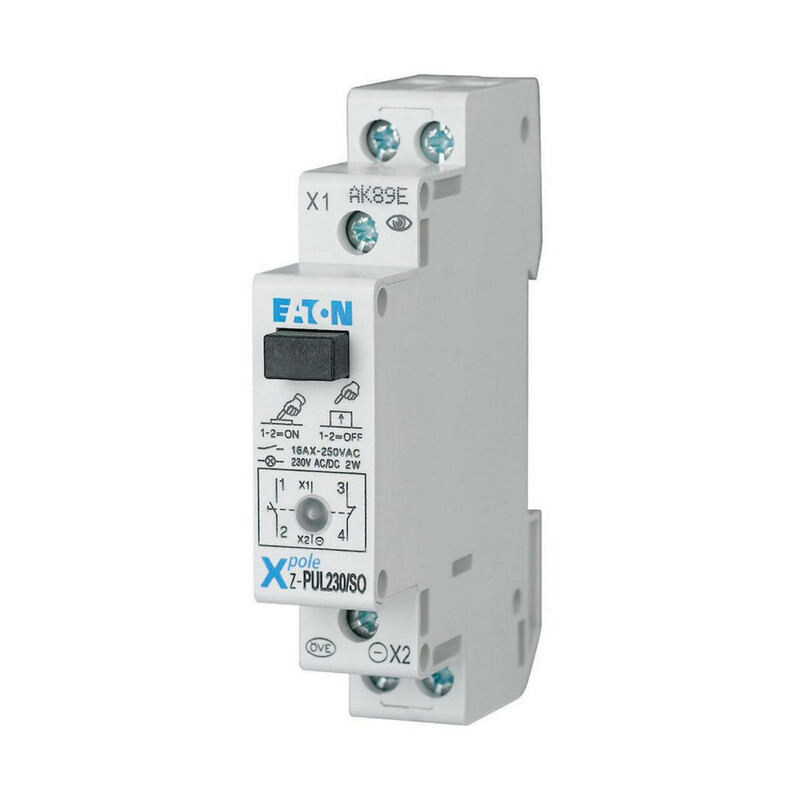

PUSH BUTTON WITH LED Z-PUL230/SO
Product code
2302996
Push button with LED, function: 1 NO and 1 NC, rated operating current 16 A, rated operating voltage control switch 250 V AC, rated operating voltage LED 230 V AC/DC, push button color black, LED color orange, standard front mounting 45 mm, mounting width 1 SU (17.5 mm), rail mounting, terminal cross-section 1-10 mm², type compliant with IEC/EN 60669, VDE 0632 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Push button for distribution board (EC001546)
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Switching current16 A
Switching voltage250 V
Voltage typeAC
With signal lampyes
Colour calotteOther
Lamp typeLED
Lamp socketOther
Max. lamp power2 W
Lamp voltage110-240 V
Colour buttonBlack
Width in number of modular spacings1
Built-in depth60 mm
Product codes
SAPADJ860
STK2302996
PLC2302996
GTIN/EAN4015082762988
Manufacturer part number276298
Vendor material number276298
Basic information
Package measurements (L x W x H)80 x 17.5 x 70 mm
Package volume0.098 l
Package weight0.08 kg
Base uniteach
Package units1 / 2 / 120
Package contents–
UNSPSC43201602
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
