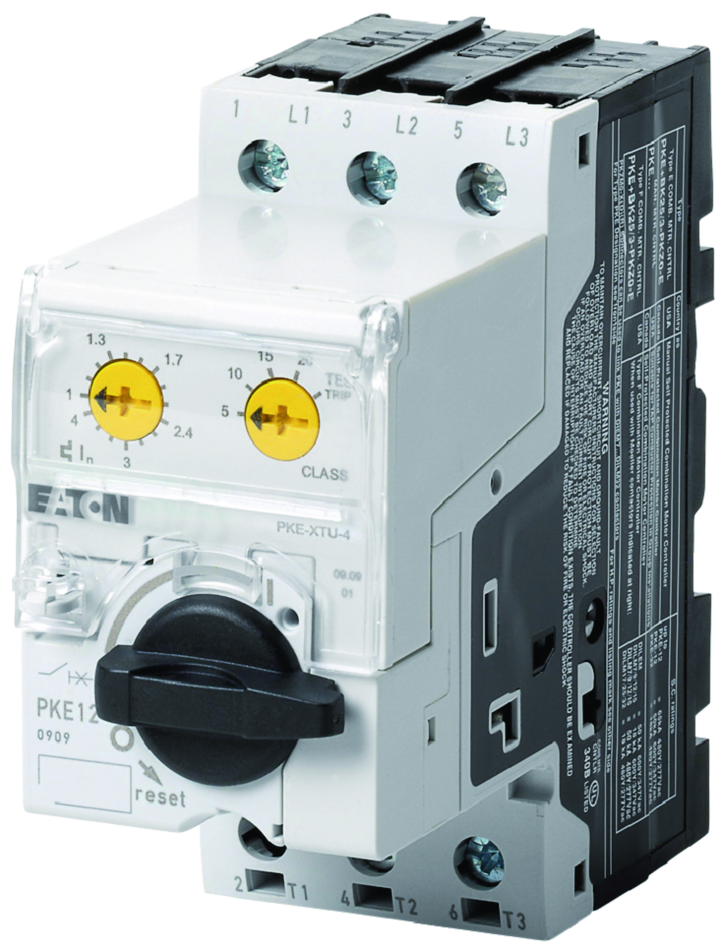

MOTOR CIRCUIT-BREAKER PKE12/XTU-12
Product code
3730533
Motor protection circuit breakers
PKZM0 and PKZM4 - classic motor protection circuit breakers, lever type, rated current 0.16...65 A
PKZM01 - motor protection circuit breakers, push-button type, rated current 0.16...25 A
PKZM0-T - protection circuit breakers for transformer primary side. Electromagnetic trip setting value is 20 x In. Rated current 0.16...25 A
PKM0 - motor protection circuit breakers without overload protection, protecting only against short circuits. Used in circuits where there is no risk of overload or where overload protection is already presentPKE - motor protection circuit breakers equipped with electronic trip. Consist of a basic module and interchangeable trip modules. Compared to classic motor protection switches, the electronic trip module offers greater flexibility in use and additional features. The PKE trip module can be connected to the SmartWire-DT system This product description is an automated translation of the original Finnish description.
PKZM0 and PKZM4 - classic motor protection circuit breakers, lever type, rated current 0.16...65 A
PKZM01 - motor protection circuit breakers, push-button type, rated current 0.16...25 A
PKZM0-T - protection circuit breakers for transformer primary side. Electromagnetic trip setting value is 20 x In. Rated current 0.16...25 A
PKM0 - motor protection circuit breakers without overload protection, protecting only against short circuits. Used in circuits where there is no risk of overload or where overload protection is already presentPKE - motor protection circuit breakers equipped with electronic trip. Consist of a basic module and interchangeable trip modules. Compared to classic motor protection switches, the electronic trip module offers greater flexibility in use and additional features. The PKE trip module can be connected to the SmartWire-DT system This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting3-12 A
Adjustment range undelayed short-circuit release186-186 A
With thermal overload protectionyes
Phase failure sensitiveyes
Switch off techniqueElectronic
Rated operating voltage690-690 V
Rated permanent current Iu12 A
Rated operation power at AC-3, 230 V3 kW
Rated operation power at AC-3, 400 V5.5 kW
Power loss3.6 W
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchno
With integrated under voltage releaseno
Product codes
SAPANS343
STK3730533
PLC3730533
GTIN/EAN4015081195435
Manufacturer part number121733
Vendor material number121733
Basic information
Package measurements (L x W x H)101 x 45 x 103 mm
Package volume0.468 l
Package weight0.44 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandEATON
VendorEATON ELECTRIC OY
