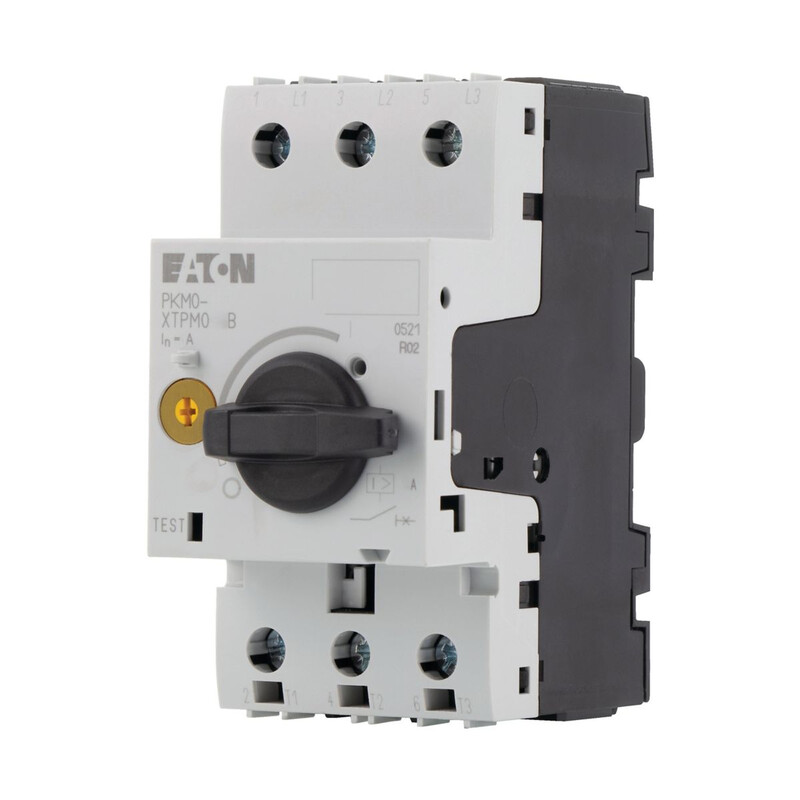

MOTOR CIRCUIT-BREAKER PKM0-0,4

PKM0-0.4 motor protection circuit breaker.

• rated current 0.4 A, adjustment range 0.25-0.4 A
• motor power AC-3 0.09 kW (400 V)
• thermal trip mechanism
• electromagnetic trip
• electromagnetic trip setting 20 x In
• short-circuit protection 5.6 A
• dimensions: width 45 mm, height 93 mm, depth 76 mm
• motor protection circuit breakers also respond to loss of one phase
• suitable for IE3 efficiency class motors
• standards: IEC/EN 60947, VDE 0660, UL, CSA
• finger and touch protected

PKM0 series

Motor protection circuit breakers without overload protection, providing protection only against short circuits. Used in circuits where there is no risk of overload or where overload protection is already in place. Rated currents 0.16-32 A.

This product description is an automated translation of the original Finnish description.
