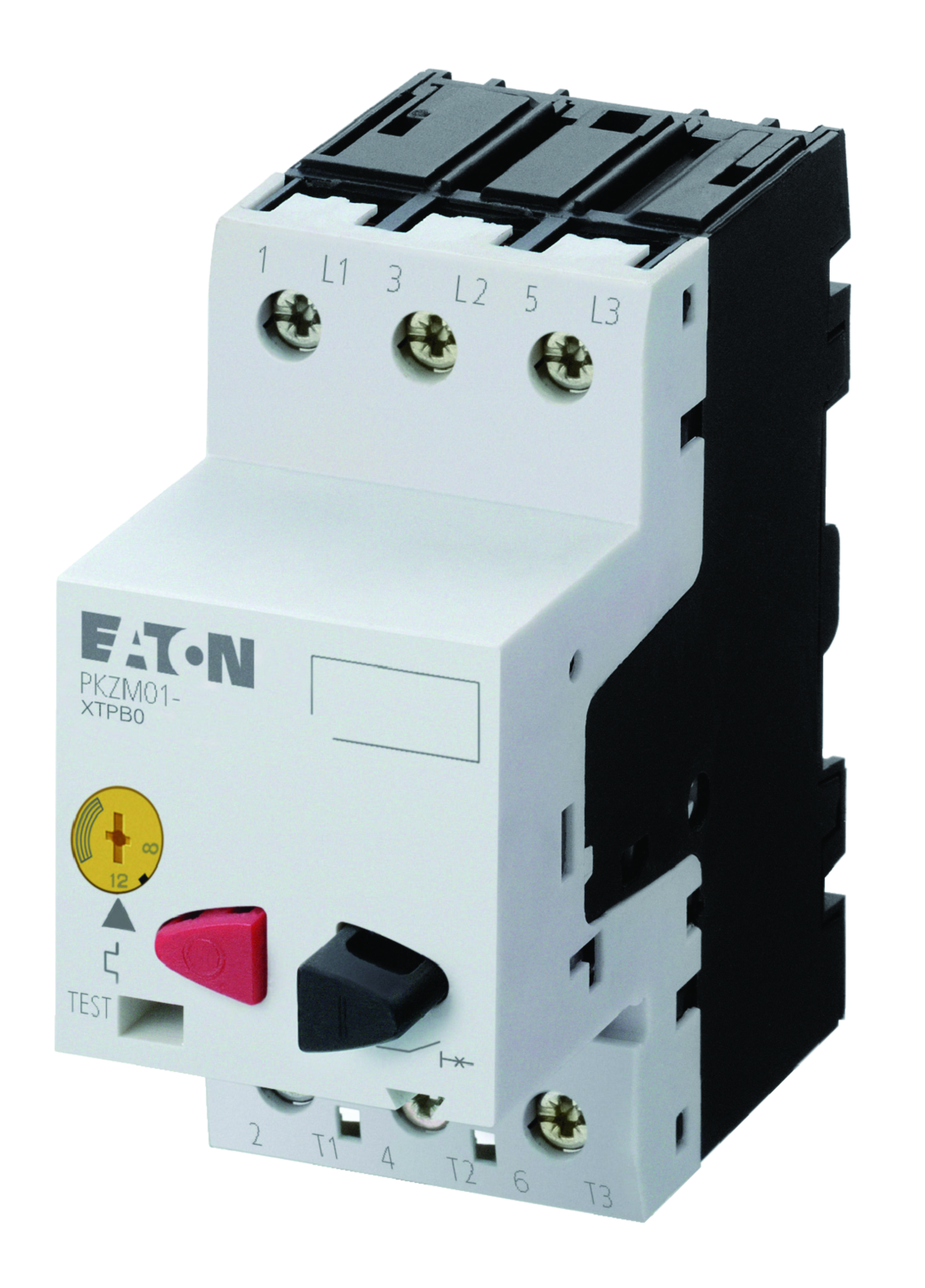

MOTOR CIRCUIT-BREAKER PKZM01-0,4

PKZM01-0,4 motor protection circuit breaker.

• rated current 0.4 A, adjustment range 0.25-0.4 A
• motor power AC-3 0.09 kW (400 V)
• push-button model
• trip types: thermal trip and electromagnetic trip
• thermal trip adjustment range 0.8-1 x In
• electromagnetic trip setting 15.5 x In
• short-circuit protection 5.6 A
• compact size width 45 mm, height 93 mm, depth 76 mm
• motor protection circuit breakers also respond to single-phase loss
• suitable for IE3 efficiency class motors
• standards: IEC/EN 60947, VDE 0660, UL, CSA
• finger and touch protected

PKZM01 series

The push-button fuseless motor protection circuit breaker combines short-circuit and fault current protection in one device. The PKZM0 series is rotary type and the PKZM01 series is push-button type, both with screw terminals. Motor protection circuit breakers are fully compatible with Eaton DIL contactors and together form an ideal motor starter combination. Selecting the correct motor protection circuit breaker is easy with Eaton's motor starter configurator, whose link is found in the attached files.

This product description is an automated translation of the original Finnish description.
