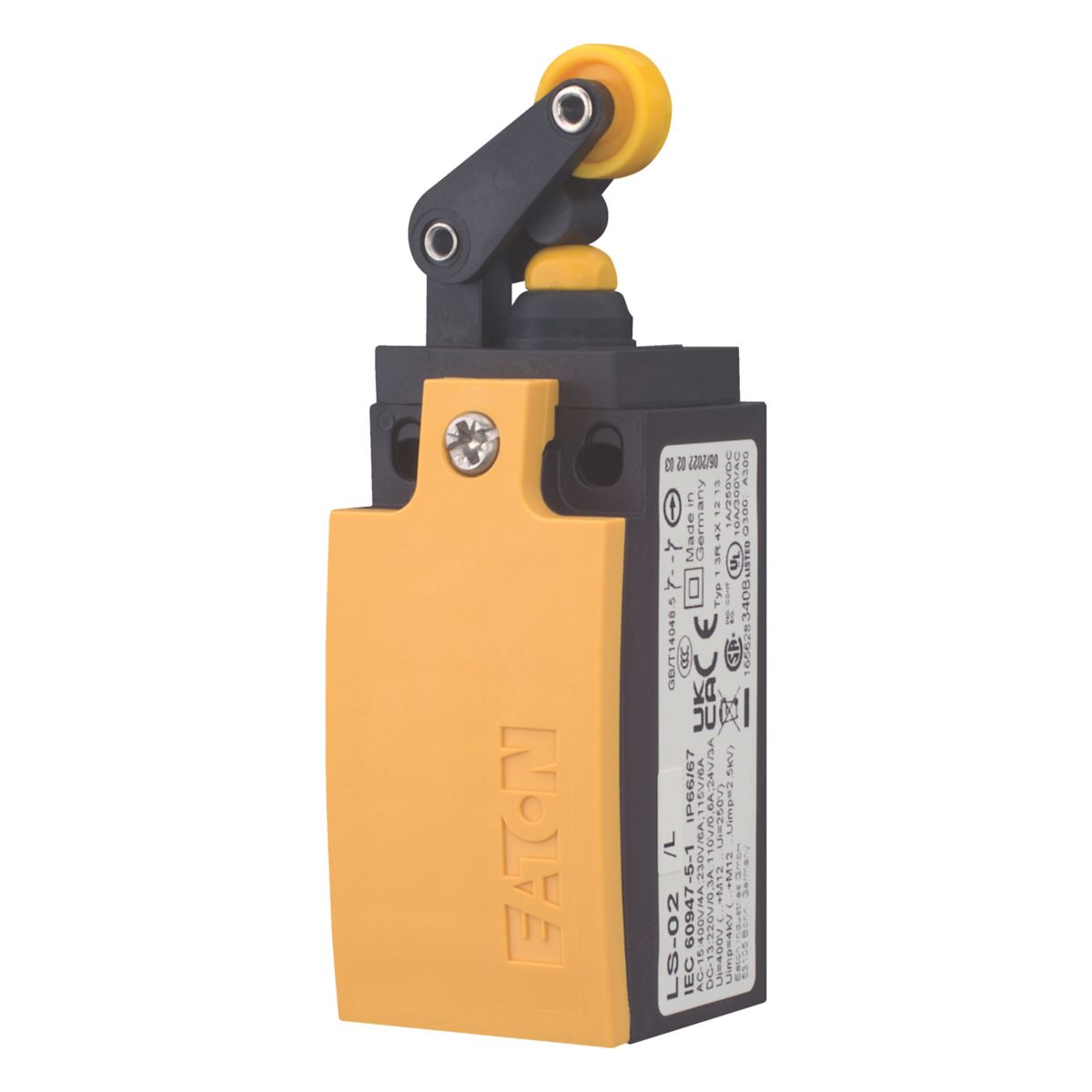

POSITION SWITHC LS-02/L

Product code
2332529
Eaton RMQ-Titan series includes a wide range of control and signaling devices suitable for the most demanding requirements. The modular design of the devices enables the assembly of numerous different systems using only a few basic components, thereby reducing logistics costs and capital tied up in inventory. The components of the RMQ-Titan series are of high quality and belong to high IP ratings—IP67 and IP69K. All signaling light fixtures use LED lighting, ensuring low energy consumption, long service life (up to 100,000 hours of continuous operation), and excellent vibration resistance. Using the LabelEditor specialized software, customers can order custom graphical markings for RMQ-Titan series components, which are manufactured by laser engraving at the factory. A wide range of emergency stop buttons, including switching indicators, contact elements with various configurations, key switches, and illuminated button rings, ensures safe device shutdown and excellent visibility of emergency stop buttons in industrial environments. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)End switch (EC000030)
Width sensor31 mm
Diameter sensor0 mm
Height of sensor61 mm
Length of sensor33.5 mm
Rated operation current Ie at AC-15, 24 V6 A
Rated operation current Ie at AC-15, 125 V6 A
Rated operation current Ie at AC-15, 230 V6 A
Rated operation current Ie at DC-13, 24 V3 A
Rated operation current Ie at DC-13, 125 V0.8 A
Rated operation current Ie at DC-13, 230 V0.3 A
Switching functionSlow-action switch
Switching function latchingno
Output electronicno
Forced openingyes
Number of safety auxiliary contacts2

Product codes

SAPACN223
STK2332529
PLC2332529
GTIN/EAN4015082661083
Manufacturer part number266108
Vendor material number266108

Basic information

Package measurements (L x W x H)33.5 x 31 x 96 mm
Package volume0.1 l
Package weight0.075 kg
Base uniteach
Package units1 / 2
Package contents
UNSPSC39122209
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
