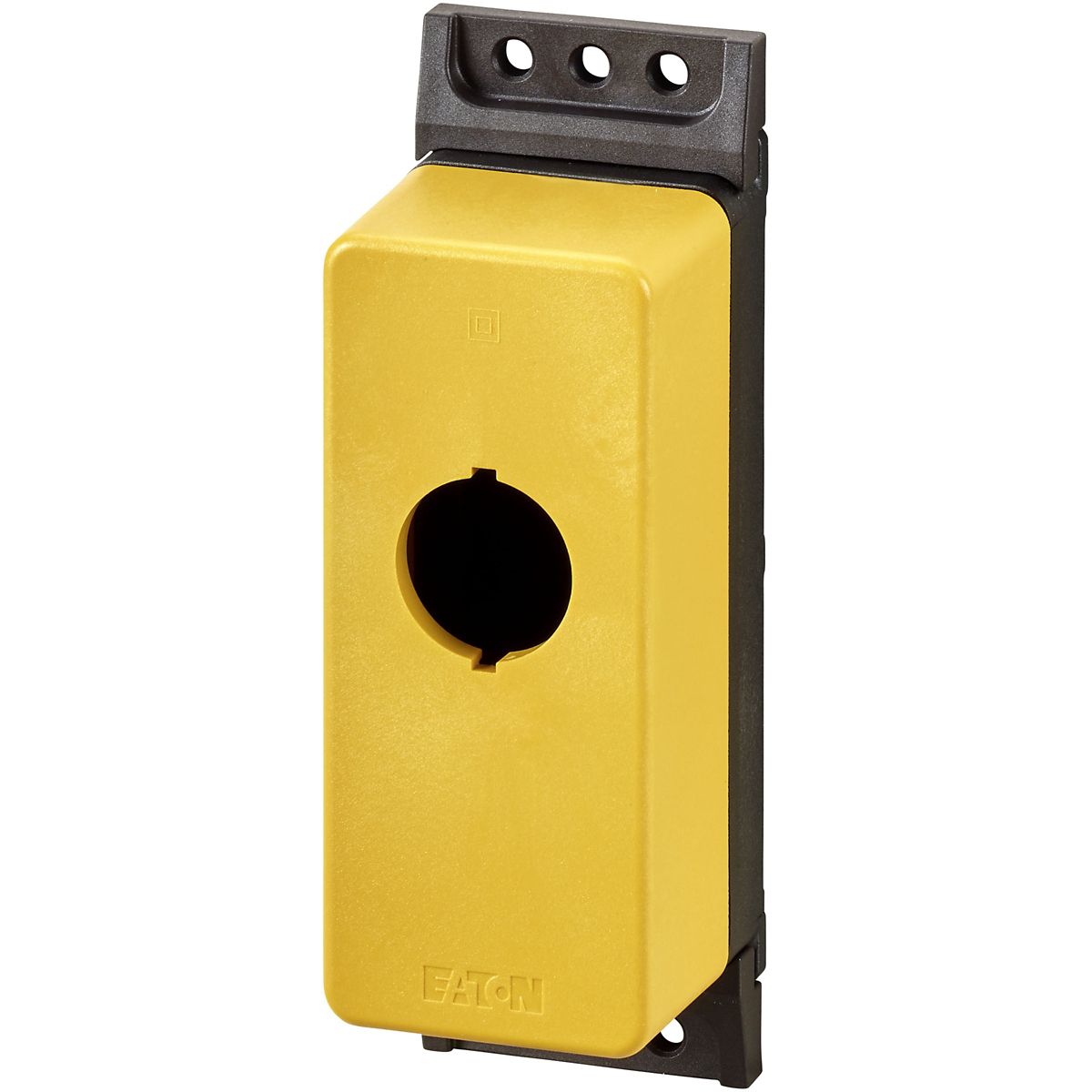

PUSH BUTTON ENCLO RMQ-TITAN M22-FIY1

Product code
2302816
bEaton RMQ - Titan series includes a wide range of control and signaling devices suitable for the most demanding requirements /b The modular design of the devices enables the assembly of numerous different systems using only a few basic components. This reduces logistics costs and capital tied up in inventory. The components of the RMQ-Titan series are high-quality and belong to high IP ratings - IP67 and IP69K. LED lighting is used in all signaling lamps, ensuring low energy consumption, long service life (up to 100,000 hours of continuous use), and excellent vibration resistance. Using the LabelEditor specialized software, customers can order custom graphical markings for RMQ-Titan series components, which are manufactured by laser engraving at the factory. A wide range of emergency stop buttons, including switching indicators, contact elements with various configurations, key switches, and illuminated pushbutton rings, ensures safe device shutdown and excellent visibility of emergency stop buttons in industrial environments. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Enclosure for control circuit devices (EC000200)
Number of command positions1
Construction type housingSurface mounted housing
Housing materialPlastic
Housing material qualityOther
Diameter openings22 mm
Colour housing coverYellow
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)4X
Width43 mm
Height131.5 mm
Depth44 mm

Product codes

SAPCMM062
STK2302816
PLC2302816
GTIN/EAN4015081939374
Manufacturer part number197231
Vendor material number2302816

Basic information

Package measurements (L x W x H)111.45 x 49.45 x 50.45 mm
Package volume0.278 l
Package weight0.095 kg
Base uniteach
Package units1
Package contents
UNSPSC39121304
BrandEATON
VendorEATON ELECTRIC OY
