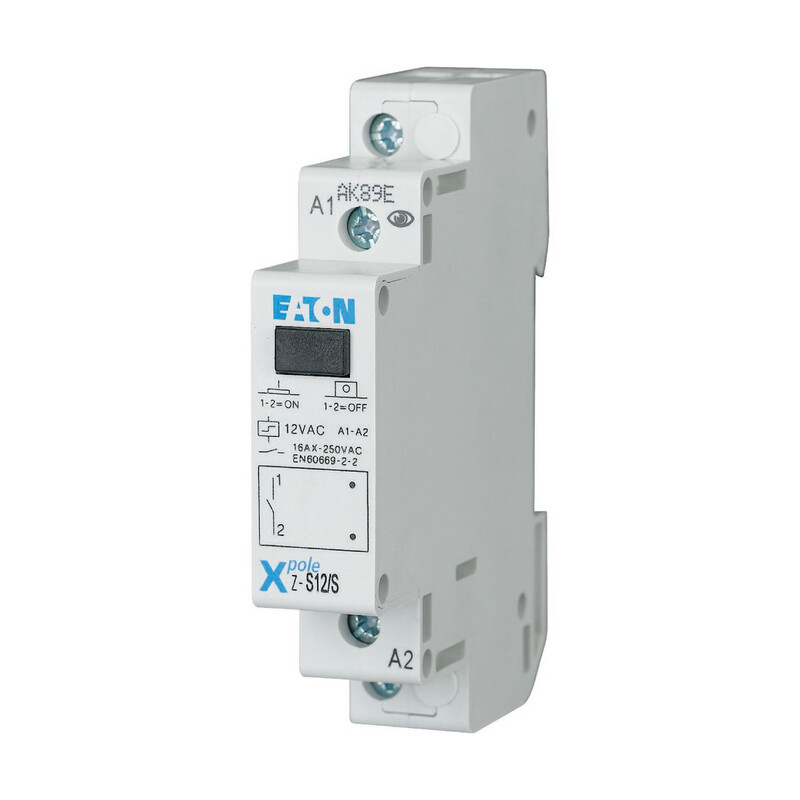

PUSHRELAY Z-S12/S, 1 SULK. 12V50HZ
Product code
2709190
Eaton xPole series - Impulse relay - According to IEC 60669 - 16 A, 250 V IEC 60669-2-2 - Control voltage AC 8-230 V - Control voltage DC 8-110 V - 1, 2, 3 and 4-pole versions This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Latching relay (EC000188)
FunctionOther
Mounting methodDIN rail
Width in number of modular spacings1
Built-in depth60 mm
Number of contacts as normally open contact1
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Control voltage 112-12 V
Type of control voltage 1AC
Frequency control voltage 150-50 Hz
Type of control voltage 2AC
Rated switch current32 A
Supply voltage250-250 V
Voltage type (supply voltage)AC
Max. incandescent lamp load0 W
Product codes
SAPACN266
STK2709190
PLC2709190
GTIN/EAN4015082652661
Manufacturer part number265266
Vendor material number265266
Basic information
Package measurements (L x W x H)80 x 17.5 x 70 mm
Package volume0.098 l
Package weight0.125 kg
Base uniteach
Package units1 / 12 / 120
Package contents–
UNSPSC39122325
BrandEATON
VendorEATON ELECTRIC OY
