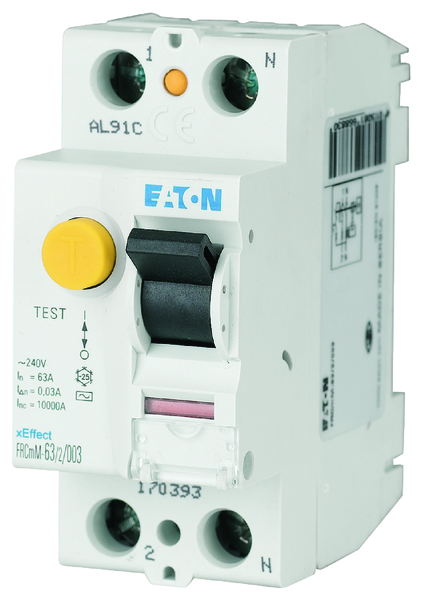

RESIDUAL CURRENT DEVICE XEFFEC FRCMM-63/2/003-A-NA
Product code
CGQ652
Eaton FAZ series circuit breakers and residual current devices are certified to UL 1077 and UL 486. They also meet IEC requirements and are suitable for global use. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles2
Rated voltage277 V
Rated current63 A
Rated fault current30 mA
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceyes
Frequency50/60 Hz
Product codes
SAPCGQ652
STKCGQ652
PLCCGQ652
GTIN/EAN4015081636174
Manufacturer part number167115
Vendor material number167115
Basic information
Package measurements (L x W x H)80 x 35 x 71 mm
Package volume0.199 l
Package weight0.22 kg
Base uniteach
Package units1 / 60 / 60
Package contents–
UNSPSC39121603
BrandEATON
VendorEATON ELECTRIC OY
