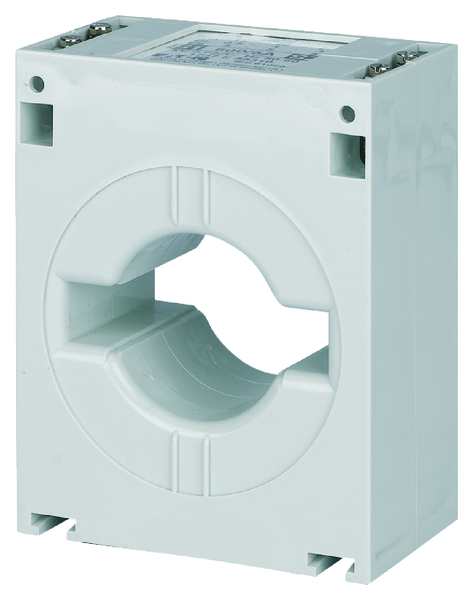

CURRENT TRANSFORMER HF5 1000/1 A
Product code
6710802
Eaton T-series current transformers
-Type HF
-Primary current up to 5000 A
-Accuracy classes 0.2S - 0.2 - 0.5 - 1 - 3
-Voltage up to 720 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current1000 A
Rated secondary current1 A
Rated secondary apparent power20 VA
Accuracy class3
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionno
Opening diameter39 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMY512
STK6710802
PLC6710802
GTIN/EAN5703498701651
Manufacturer part number135425
Vendor material number741E0032
Basic information
Package measurements (L x W x H)84 x 106 x 52 mm
Package volume0.463 l
Package weight0.685 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandEATON
VendorEATON ELECTRIC OY
