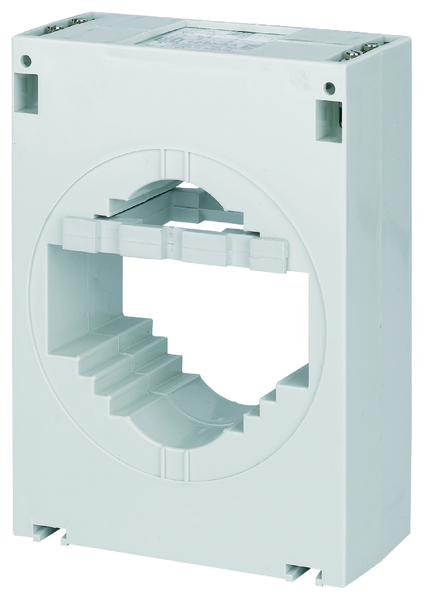

CURRENT TRANSFORMER HF7A 1500/5 A class 0.2S
Product code
6710870
Eaton T-series current transformers
-Type HF
-Primary current up to 5000 A
-Accuracy classes 0.2S - 0.2 - 0.5 - 1 - 3
-Voltage up to 720 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current1500 A
Rated secondary current5 A
Rated secondary apparent power10 VA
Accuracy class3
Overcurrent limiting factorFS 10
Calibratedno
With contact protectionno
Opening diameter65 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMY580
STK6710870
PLC6710870
GTIN/EAN5703498702344
Manufacturer part number135495
Vendor material number741H0060
Basic information
Package measurements (L x W x H)107 x 52 x 149 mm
Package volume0.829 l
Package weight1.04 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandEATON
VendorEATON ELECTRIC OY
