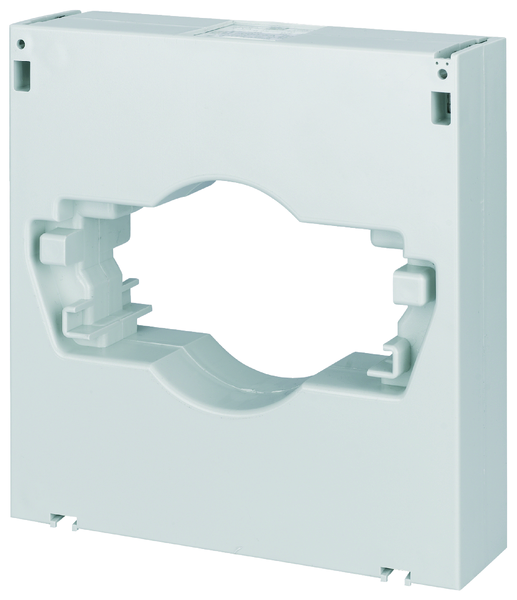

CURRENT TRANSFORMER HF8A 1500/5 A CLASS 0.2S
Product code
6710888
Eaton T-series current transformers
-Type HF
-Primary current up to 5000 A
-Accuracy classes 0.2S - 0.2 - 0.5 - 1 - 3
-Voltage up to 720 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current1500 A
Rated secondary current5 A
Rated secondary apparent power7.5 VA
Accuracy class3
Overcurrent limiting factorFS 10
Calibratedno
With contact protectionno
Opening diameter81 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMY598
STK6710888
PLC6710888
GTIN/EAN5703498702535
Manufacturer part number135513
Vendor material number741K0031
Basic information
Package measurements (L x W x H)181 x 53 x 186 mm
Package volume1.784 l
Package weight1.665 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandEATON
VendorEATON ELECTRIC OY
