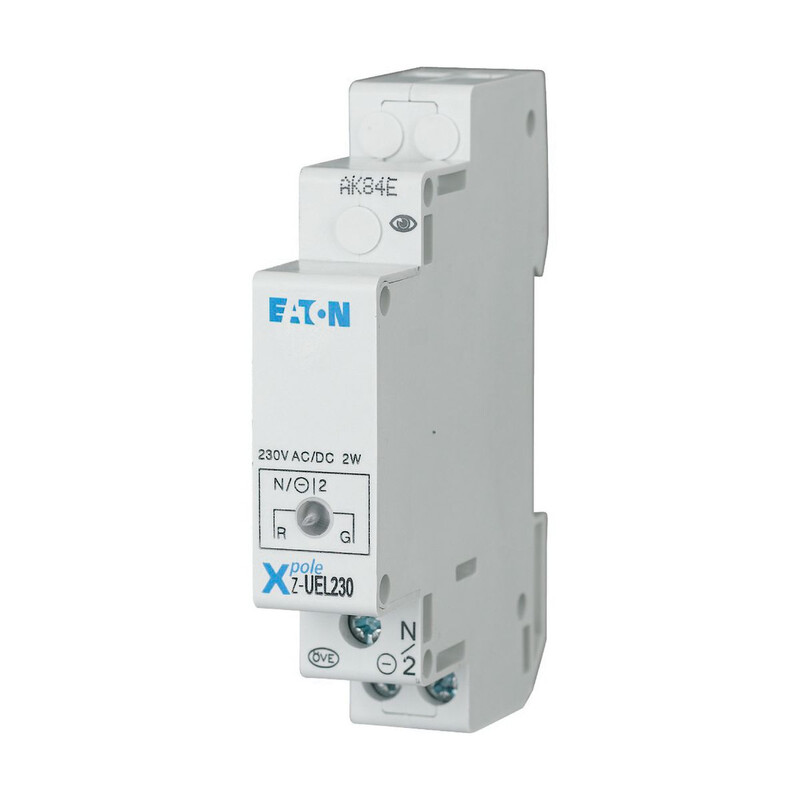

TWIN SIGNAL LAMP Z-UEL230
Product code
2105506
Color-changing single lamp for various applications, LED rated voltage 230V AC/DC, LED color red/green, luminous intensity 15mcd, heat dissipation 2W/LED, flashing frequency normal 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), rail mounting, terminal cross-sectional area 1-10 mm², type compliant with IEC/EN 60669, VDE 0632. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Indicator light for distribution board (EC001657)
Colour calotteOther
Lamp typeLED
Lamp socketOther
Max. lamp power2 W
Rated voltage230 V
Voltage typeAC/DC
Width in number of modular spacings1
Built-in depth60 mm
Degree of protection (IP)IP40
Product codes
SAPADJ846
STK2105506
PLC2105506
GTIN/EAN4015082849238
Manufacturer part number284923
Vendor material number284923
Basic information
Package measurements (L x W x H)80 x 17.5 x 65.5 mm
Package volume0.092 l
Package weight0.065 kg
Base uniteach
Package units1 / 12 / 120
Package contents–
UNSPSC39121534
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
