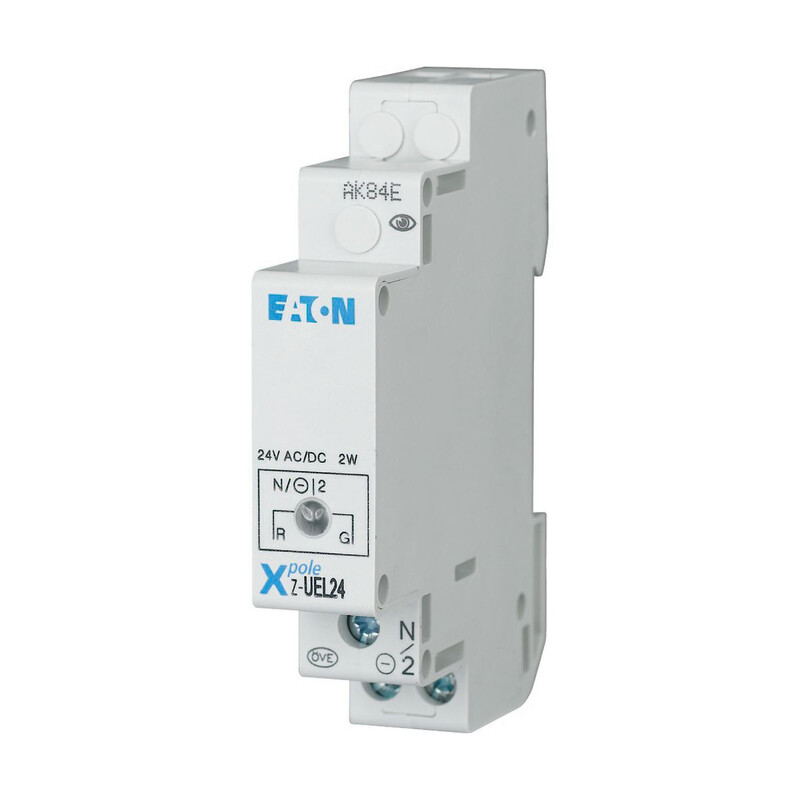

TWIN SIGNAL LAMP Z-UEL24
Product code
2105505
Color-changing single lamp for various applications, LED rated voltage 24V AC/DC, LED color red/green, luminous intensity 15mcd, heat dissipation 2W/LED, flashing frequency standard 2 Hz, standard front mounting 45 mm, installation width 1 SU (17.5mm), rail mounting, terminal cross-section 1-10 mm², type compliant with IEC/EN 60669, VDE 0632. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Indicator light for distribution board (EC001657)
Colour calotteOther
Lamp typeLED
Lamp socketOther
Max. lamp power2 W
Rated voltage24 V
Voltage typeAC/DC
Width in number of modular spacings1
Built-in depth60 mm
Degree of protection (IP)IP40
Product codes
SAPADJ845
STK2105505
PLC2105505
GTIN/EAN4015082849245
Manufacturer part number284924
Vendor material number284924
Basic information
Package measurements (L x W x H)80 x 65.5 x 17.5 mm
Package volume0.092 l
Package weight0.065 kg
Base uniteach
Package units1 / 12 / 120
Package contents–
UNSPSC39121534
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
