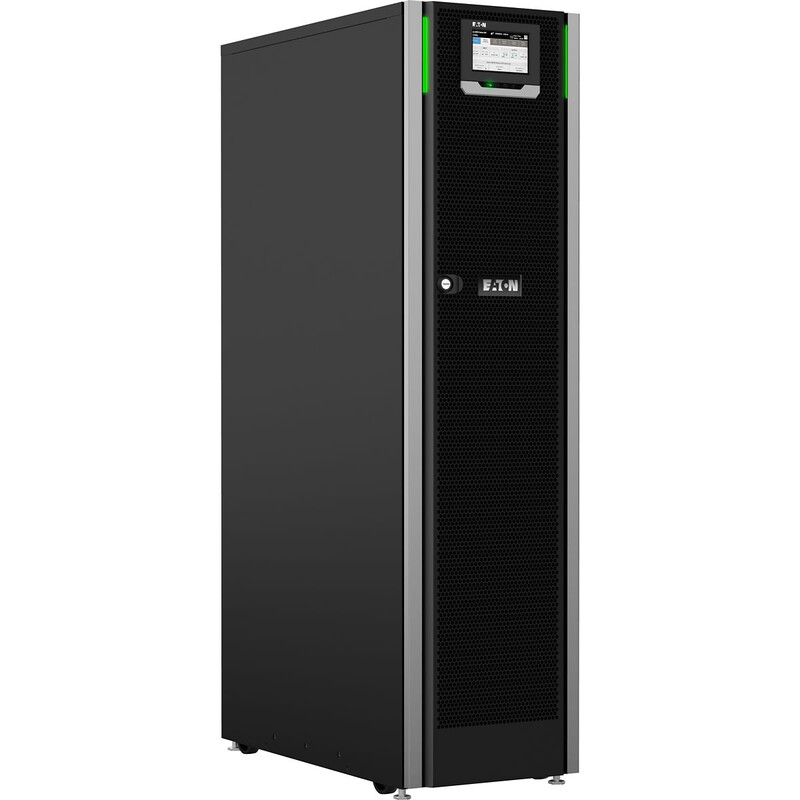

UPS-DEVICE ONLINE 93PS-15(40)-15-4X9AH-MBS-6
Product code
8417159
Eaton 93PS UPSLowest Total Cost of Ownership (TCO) • Efficiency - Over 96% efficiency in double conversion mode - Up to 99% efficiency with ESS (Energy Saver System) • Scalability - Scalable architecture allows you to pay only for what you need, when you need it - "Pay as you grow" - Up to four UPS units can be paralleled • Modularity - Modular design enables internal redundancy; optional additional battery cabinets available • Smallest footprint in the market - The 93PS delivers significantly more power in a smaller package: 0.25 m2 for the smaller frame (8-20 kW) and 0.36 m2 for the larger frame (8-40 kW) • Output power factor of 1.0 Best power availability • Hot Swap and Hot Scalable technology - UPS modules can be replaced or added while the unit is running - A portion of the battery string can be replaced or serviced while the unit is running • Robust static bypass - Static bypass that enhances grid selectivity • Safety - Static bypass equipped with an ultra-fast fuse - ensures safety in all conditions - Equipped with a backfeed prevention contactor - no additional devices required in the cabinet • Cloud and virtualization ready - The 93PS and Eaton's Intelligent Power Manager software elevate system resilience by integrating electrical and IT infrastructure - Manage IT and power systems from a single screen - Load sharing - A 50% reduction in load means 150% more runtime! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)UPS (EC000382)
Input voltage380-415 V
Primary frequency40-72 Hz
Number of phases primary3
Output voltage380-415 V
Secondary frequency50-60 Hz
Output effective power15000 W
Output apparent power15000 VA
USB interfaceno
With communication interface RS-232no
Number of phases secondary3
SNMPyes
Voltage typeAC
Height1750 mm
Width480 mm
Depth750 mm
Product codes
SAPCIF248
STK8417159
PLC8417159
GTIN/EAN6430028227709
Manufacturer part numberBC51AD306A01100000
Vendor material numberBC51AD306A01100000
Basic information
Package measurements (L x W x H)750 x 480 x 1750 mm
Package volume630 l
Package weight513 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121011
BrandEATON
VendorEATON ELECTRIC OY
The country of origin stated by the supplierFinland
