UPS-DEVICE ONLINE 93T 30kVA IB 2X36X9AH

Product code
8420442

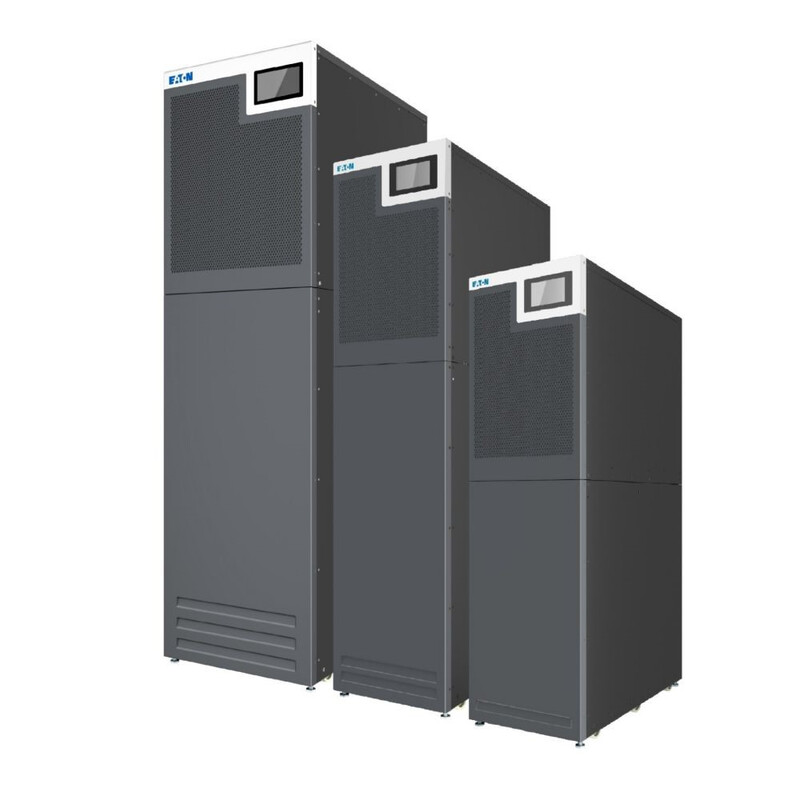

Eaton 93T UPS 15-80kVA Best efficiency in its class at over 96% efficiency in online mode and up to 99% efficiency in Energy mode. Power factor (1.0) delivers more real power than many competitors. Internal battery available up to 80kVA, resulting in a smaller footprint, lower costs, and easier installation. Equipped with backfeed protection and load short-circuit protection. Critical applications: • Commercial and institutional • Financial • Healthcare • Government and public sector • Industrial IT applications This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)UPS (EC000382)
Input voltage380 - 415 V
Primary frequency50 - 60 Hz
Number of phases primary3
Output voltage380 - 415 V
Secondary frequency50 - 60 Hz
Output effective power30000 W
Output apparent power30000 VA
Power consumption296 W
USB interfaceyes
With communication interface RS-232yes
Number of phases secondary3
SNMPno
Voltage typeAC

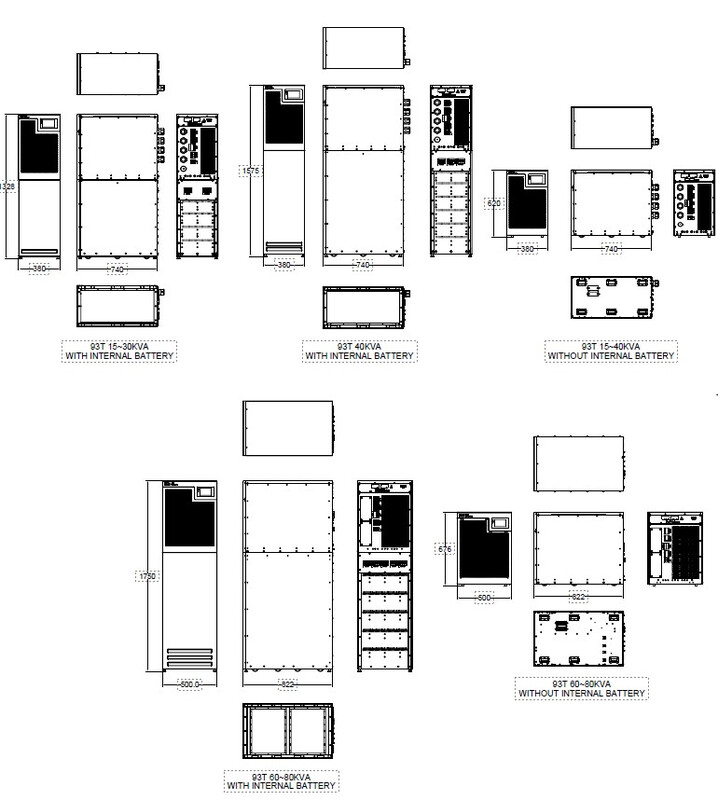

Height1328 mm
Width380 mm

Product codes

SAPDII479
STK8420442
PLC8420442
GTIN/EAN6430070724027
Manufacturer part number93T30KMBSBI
Vendor material number93T30KMBSBI

Basic information

Package measurements (L x W x H)950 x 650 x 1625 mm
Package volume1003.438 l
Package weight393 kg
Base uniteach
Package units1
Package contents
UNSPSC39121011
BrandEATON
VendorEATON ELECTRIC OY

Documents (4)
