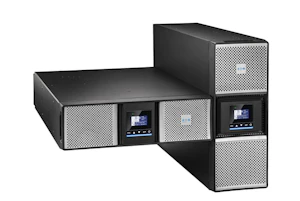

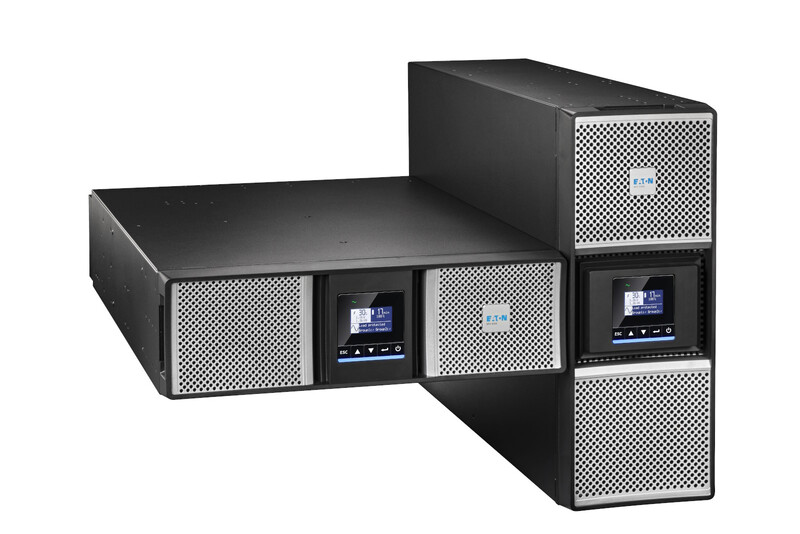

UPS-DEVICE ONLINE 9PX 5000I NETPACK G2
Product code
8420461
New 9PX Gen2 product line, power class 5-11kVA / 5-11kW
• Online double-conversion technology ensures uninterrupted power supply in all conditions
• More real power. Output power factor of 1.0 (VA = W)
• NETWORK-M3 network card included in every unit
• Can be mounted in a 19" rack (rack mounting kit included) or as a tower unit on the floor (stand feet included) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)UPS (EC000382)
Input voltage100 - 276 V
Primary frequency40 - 70 Hz
Number of phases primary1
Output voltage200 - 240 V
Secondary frequency50 - 60 Hz
Output effective power5000 W
Output apparent power5000 VA
Power consumption165 W
USB interfaceyes
With communication interface RS-232yes
Number of phases secondary1
SNMPyes
Voltage typeAC
Height130 mm
Width440 mm
Product codes
SAPDLA754
STK8420461
PLC8420461
GTIN/EAN3553340710551
Manufacturer part number9PX5KIRTNG2
Vendor material number9PX5KIRTNG2
Basic information
Package measurements (L x W x H)961 x 595 x 312 mm
Package volume178.4 l
Package weight55 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121011
BrandEATON
VendorEATON ELECTRIC OY
