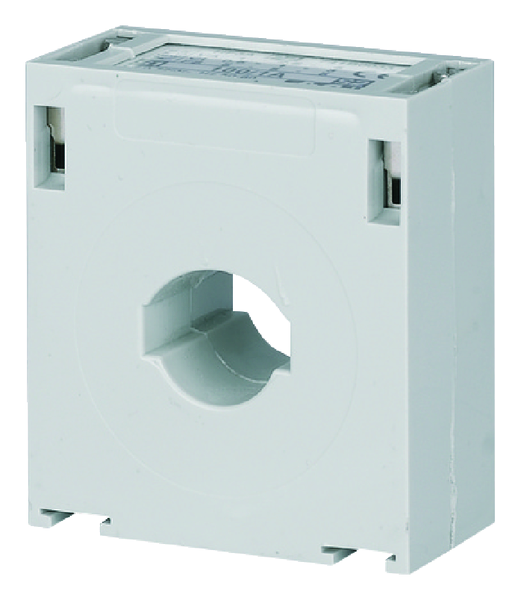

CURRENT TRANSFORMER HF3A 250/1 A
Product code
6710721
Eaton T-series current transformers
-Type HF
-Primary current up to 5000 A
-Accuracy classes 0.2S - 0.2 - 0.5 - 1 - 3
-Voltage up to 720 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current250 A
Rated secondary current1 A
Rated secondary apparent power5 VA
Accuracy class3
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionno
Opening diameter17 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMY431
STK6710721
PLC6710721
GTIN/EAN5703498700227
Manufacturer part number135307
Vendor material number741B0028
Basic information
Package measurements (L x W x H)55 x 60 x 30 mm
Package volume0.099 l
Package weight0.265 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandEATON
VendorEATON ELECTRIC OY
