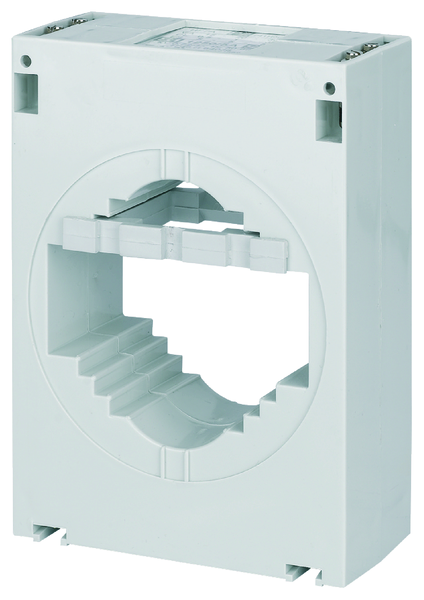

CURRENT TRANSFORMER HF7A 1200/5 A class 0.2S
Product code
6710868
Eaton T-series current transformers
-Type HF
-Primary current up to 5000 A
-Accuracy classes 0.2S - 0.2 - 0.5 - 1 - 3
-Voltage up to 720 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current1200 A
Rated secondary current5 A
Rated secondary apparent power10 VA
Accuracy class3
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionno
Opening diameter65 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMY578
STK6710868
PLC6710868
GTIN/EAN5703498702320
Manufacturer part number135493
Vendor material number741H0056
Basic information
Package measurements (L x W x H)107 x 52 x 149 mm
Package volume0.829 l
Package weight0.965 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandEATON
VendorEATON ELECTRIC OY
