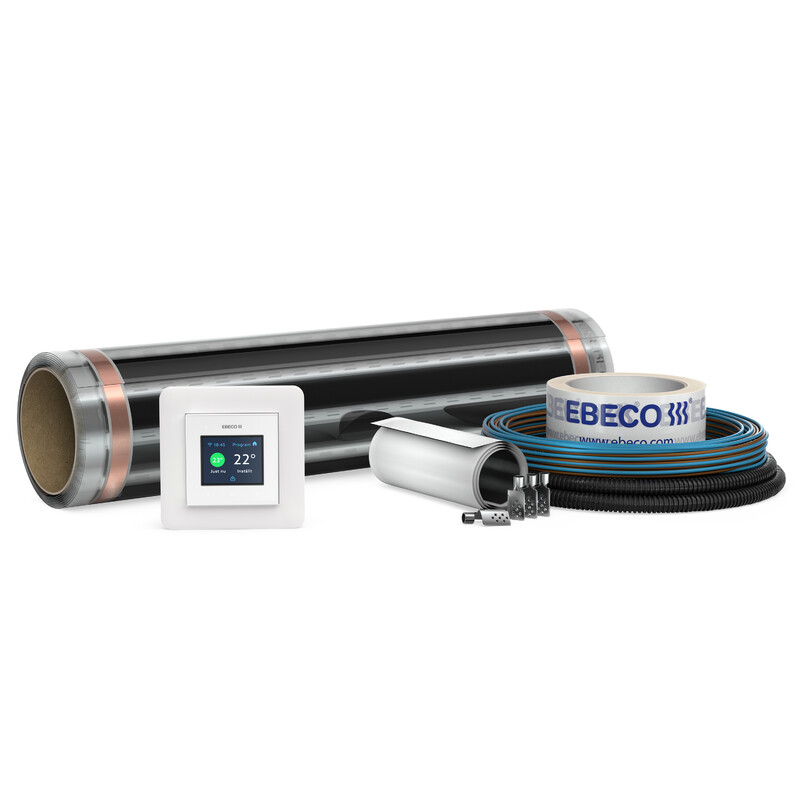

HEATER UNIT EBECO FOIL EBECO FOIL KIT 500 6M2 65W/M2

Product code
8176231
We offer a complete floor heating system specifically designed for wood and laminate flooring. This kit includes everything you need for installation, such as the EB-Therm 500 thermostat, tape, connectors, RTK cables, and sensor tubing. The floor heating film has a power output of 65 W/m² and is intended for dry rooms only. The film's extremely low profile height makes it ideal for renovation projects. It is also suitable for installation under vinyl planks as well as plastic and full-surface carpets. The floor heating film always requires Ebisol insulation beneath it. The FoilKit 500 includes the EB-Therm 500 thermostat with various energy-saving programs, tape, connectors, RTK cables, and sensor tubing. • Supply voltage: 230V • Area: 6 m² • Power: 65 W/m² • Thickness: 0.3 mm • Width: 1000 mm • Film fixation: tape This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Electric surface heating (EC000405)
ModelHeating cable
With support matno
Fixation thermal conductorOther
Self-adhesiveno
Connection voltage230 - 230 V
Connected load351 - 351 W
Power65 W/m²
Heating conductor load26 W/m
Resistance151 Ohm
Number of cold conductors1
Length of cold conductors6250 mm
Suitable for damp spaceno
Suitable as outdoor surface heatingno
Suitable as roof surface heatingno
Surface6 m²

Product codes

SAPDQB584
STK8176231
PLC8176231
GTIN/EAN7330778610204
Manufacturer part number8961020
Vendor material number8176231

Basic information

Package measurements (L x W x H)570 x 160 x 150 mm
Package volume13.68 l
Package weight3.3 kg
Base uniteach
Package units1
Package contents
UNSPSC40101851
BrandEBECO
VendorEBECO OY
